Globe IB412 Bronze Globe Valve
Globe IB412 Bronze Globe Valve
SKU:VAL-e9bd19
High-quality Globe IB412 Bronze Globe Valve for general service applications, conforms to MSS SP-80 Type 1, Class 300 standards.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Globe IB412 Bronze Globe Valve
$249.99
Quantity: 1
Claim Your Seller Account
Globe IB412 Bronze Globe Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

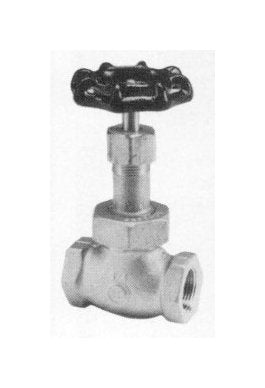

The Globe IB412 Bronze Globe Valve is a high-quality valve suitable for general service applications in both consumer and institutional settings. With a working pressure of 300 lb. SWP and 600 lb. WOG, this valve features a durable bronze construction including the body, bonnet, disc, stem, and union bonnet nut. It is designed with a regrinding disc, gland packing, and threaded ends for easy installation. This valve conforms to MSS SP-80 Type 1, Class 300 standards, ensuring reliable performance and longevity. Ideal for a range of industrial and commercial applications, this Globe IB412 valve is built to deliver exceptional functionality and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Material List 0

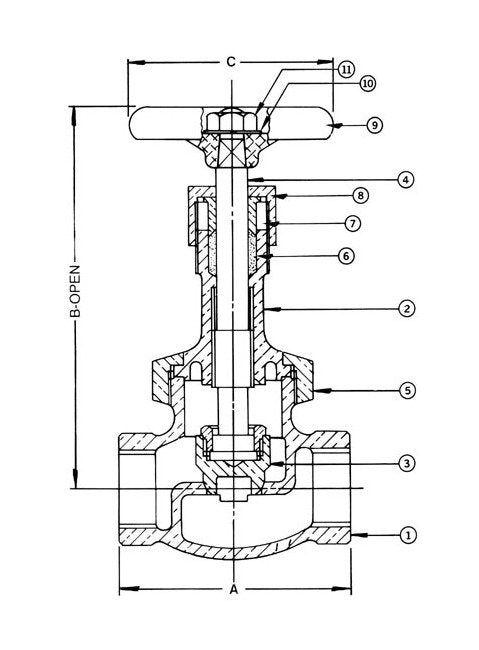

No. Part Material Specification 1 Body Bronze ASTM B 61 2 Bonnet Bronze ASTM B 61 3 Disc Bronze ASTM B 61 4 Stem Bronze ASTM B 61 5 Union Bonnet Nut Bronze ASTM B 61 6 Packing Non-Asbestos Commercial 7 Gland Brass ASTM B 124 C37700 8 Packing Nut Brass ASTM B 16 9 Handwheel Mall. Iron Commercial 10 Identification Plate Aluminum Commercial 11 Handwheel Nut Brass Commercial 12 Disc Ring Bronze Commercial
Specifications Dimension A
146.05 mm
Specifications Dimension B
254.00 mm
Specifications Dimension C
120.65 mm
Specifications Material
Bronze
Specifications Size
50.80 mm
