Globe IB412 - Bronze Globe Valve
Globe IB412 - Bronze Globe Valve
SKU:VAL-4d2910
High-quality Globe IB412 - Bronze Globe Valve, 300 lb. SWP, 600 lb. WOG, ideal for general service applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Globe IB412 - Bronze Globe Valve
$89.99
Quantity: 1
Claim Your Seller Account
Globe IB412 - Bronze Globe Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

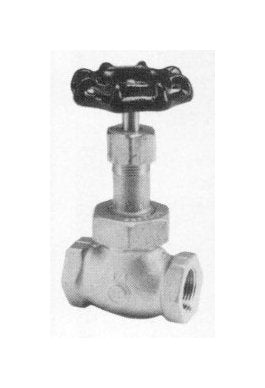

The Globe IB412 - Bronze Globe Valve is a high-quality valve designed for general service applications. With a pressure rating of 300 lb. SWP and 600 lb. WOG (Non-Shock), this valve is durable and efficient. Its bronze construction ensures reliability, with features like a regrinding disc, union bonnet, and threaded ends for easy installation. Conforming to MSS SP-80 Type 1, Class 300, with integral disc and stem on smaller sizes, this valve is built to meet industry standards and ensure smooth operations.
Product Specifications

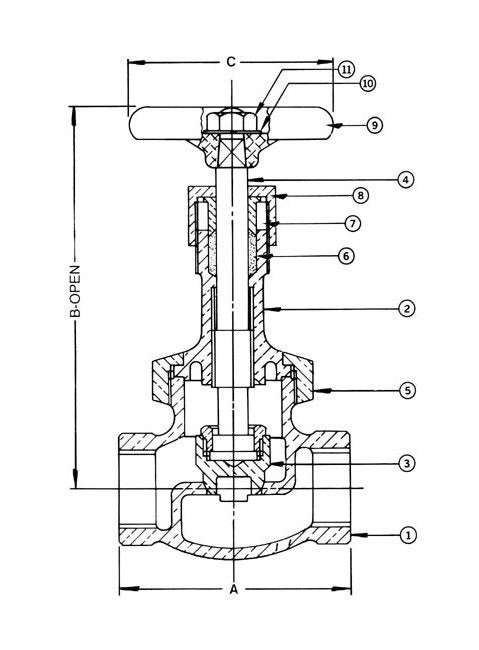

Material List 0
No. Part Material Specification 1 Body Bronze ASTM B 61 2 Bonnet Bronze ASTM B 61 3 Disc Bronze ASTM B 61 4 Stem Bronze ASTM B 61 5 Union Bonnet Nut Bronze ASTM B 61 6 Packing Non-Asbestos Commercial 7 Gland Brass ASTM B 124 C37700 8 Packing Nut Brass ASTM B 16 9 Handwheel Mall. Iron Commercial 10 Identification Plate Aluminum Commercial 11 Handwheel Nut Brass Commercial 12 Disc Ring Bronze Commercial
Specifications Dimension A
61.93 mm
Specifications Dimension B
114.30 mm
Specifications Dimension C
63.50 mm
Specifications Material
Bronze
Specifications Size
12.70 mm
