Globe IB412 - Bronze Globe Valve 6.35mm
Globe IB412 - Bronze Globe Valve 6.35mm
SKU:VAL-5c962a
Durable Globe IB412 Bronze Valve, 300 lb. SWP, 600 lb. WOG, Threaded Ends, MSS SP-80 Type 1, Class 300 Standards
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Globe IB412 - Bronze Globe Valve 6.35mm
$69.99
Quantity: 1
Claim Your Seller Account
Globe IB412 - Bronze Globe Valve 6.35mm
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

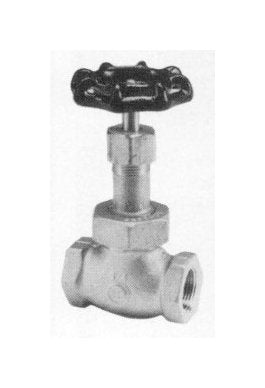

The Globe IB412 Bronze Globe Valve is a high-quality valve designed for general service applications. Featuring a 300 lb. SWP and 600 lb. WOG rating, this valve is built for durability and maximum performance. Constructed with bronze material conforming to ASTM B 61 standards, it includes a regrinding disc, union bonnet, and gland packing. With threaded ends and meeting MSS SP-80 Type 1, Class 300 standards, this valve ensures reliable operation and efficient flow control. The integrated disc and stem enhance functional integrity, making it a versatile choice for various industrial settings.
Product Specifications
Material List 0

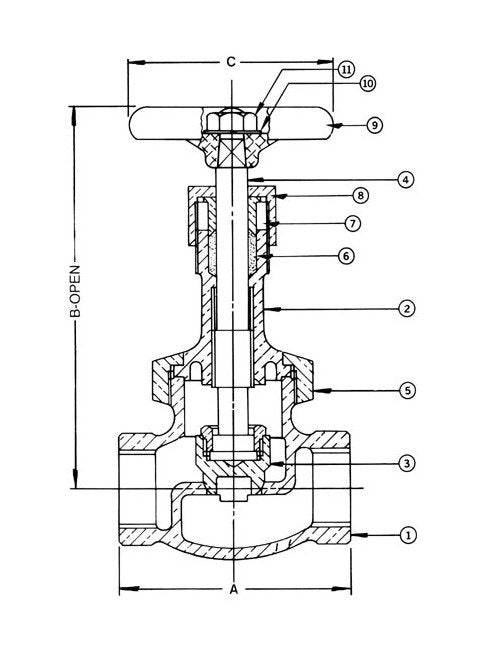

No. Part Material Specification 1 Body Bronze ASTM B 61 2 Bonnet Bronze ASTM B 61 3 Disc Bronze ASTM B 61 4 Stem Bronze ASTM B 61 5 Union Bonnet Nut Bronze ASTM B 61 6 Packing Non-Asbestos Commercial 7 Gland Brass ASTM B 124 C37700 8 Packing Nut Brass ASTM B 16 9 Handwheel Mall. Iron Commercial 10 Identification Plate Aluminum Commercial 11 Handwheel Nut Brass Commercial 12 Disc Ring Bronze Commercial
Specifications Dimension A
52.40 mm
Specifications Dimension B
101.60 mm
Specifications Dimension C
57.15 mm
Specifications Material
Bronze
Specifications Size
6.35 mm
