Globe IB412 Bronze Valve - 300 lb. SWP, 600 lb. WOG
Globe IB412 Bronze Valve - 300 lb. SWP, 600 lb. WOG
SKU:VAL-3b919d
Premium Globe IB412 Bronze Valve - Ideal for general service with 300 lb. SWP, 600 lb. WOG ratings. Conforms to MSS SP-80 standards.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Globe IB412 Bronze Valve - 300 lb. SWP, 600 lb. WOG
$189.99
Quantity: 1
Claim Your Seller Account
Globe IB412 Bronze Valve - 300 lb. SWP, 600 lb. WOG
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

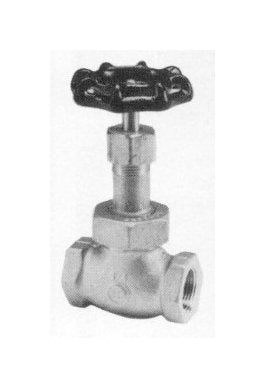

The Globe IB412 Bronze Valve is a top-of-the-line solution for both consumer and institutional buyers looking for unparalleled performance and durability. With a 300 lb. SWP and 600 lb. WOG rating, this valve is ideal for general service applications. It features a bronze regrinding disc, union bonnet, and gland packed design for optimal functionality. The threaded ends make installation a breeze while conforming to MSS SP-80 Type 1, Class 300 standards. Built with precision and quality in mind, the integral disc and stem ensure reliable performance. Trust the Globe IB412 to deliver exceptional results in a wide range of industrial environments.
Product Specifications
Material List 0

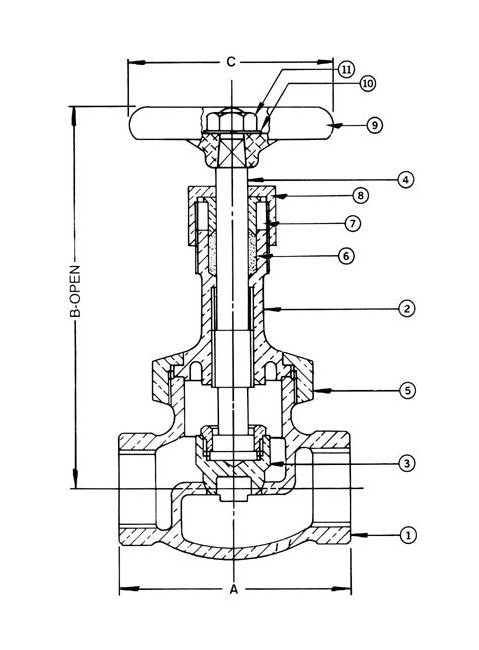

No. Part Material Specification 1 Body Bronze ASTM B 61 2 Bonnet Bronze ASTM B 61 3 Disc Bronze ASTM B 61 4 Stem Bronze ASTM B 61 5 Union Bonnet Nut Bronze ASTM B 61 6 Packing Non-Asbestos Commercial 7 Gland Brass ASTM B 124 C37700 8 Packing Nut Brass ASTM B 16 9 Handwheel Mall. Iron Commercial 10 Identification Plate Aluminum Commercial 11 Handwheel Nut Brass Commercial 12 Disc Ring Bronze Commercial
Specifications Dimension A
120.65 mm
Specifications Dimension B
196.85 mm
Specifications Dimension C
107.95 mm
Specifications Material
Bronze
Specifications Size
38.10 mm
