Globe IB413T Bronze Gate Valve - 31.75mm, Class 150, Threaded Ends
Globe IB413T Bronze Gate Valve - 31.75mm, Class 150, Threaded Ends
SKU:VAL-836497
Reliable Globe IB413T Bronze Gate Valve for heavy-duty industrial service, Class 150, 31.75mm
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Globe IB413T Bronze Gate Valve is designed for heavy-duty service with a 150 lb. SWP, 300 lb. WOG (Non-Shock) rating. This valve features a Teflon disc, union bonnet, and gland packing for secure sealing. With threaded ends and bronze construction meeting ASTM B 62 standards, this valve ensures reliability and durability. Conforming to MSS SP-80 Type 2, Class 150, it is ideal for industrial applications requiring precision flow control.
Product Specifications

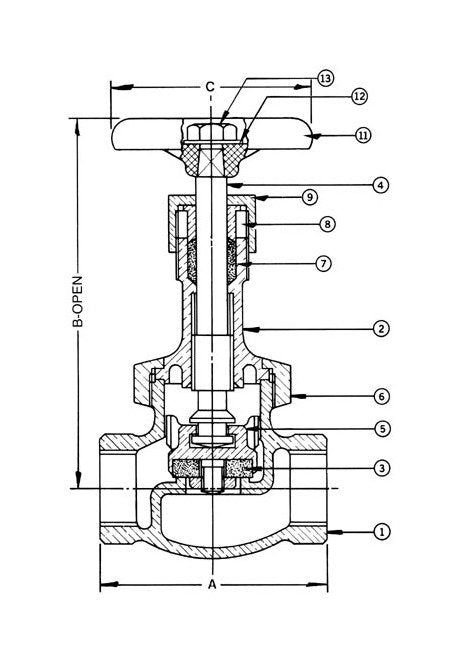

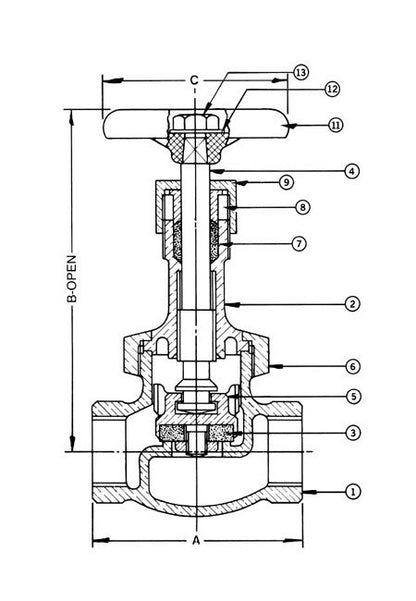

Material List 0
No. Part Material Specification 1 Body Bronze ASTM B 62 2 Bonnet Bronze ASTM B 62 3 Disc Teflon 4 Stem Bronze ASTM B 62 5 Disc Holder Bronze ASTM B 161/4" to 3/4" ASTM B 621" and 3" Incl. 6 Union Bonnet Nut Bronze ASTM B 62 7 Packing Non-Asbestos Commercial 8 Gland Brass ASTM B 124 C37700 9 Packing Nut Brass ASTM B 283 C37700 10 Disc Nut Bronze Commercial 11 Handwheel Mall. Iron Commercial 12 Identification Plate Aluminum Commercial 13 Handwheel Nut Brass Commercial
Specifications Dimension A
98.43 mm
Specifications Dimension B
158.75 mm
Specifications Dimension C
88.90 mm
Specifications Material
Bronze
Specifications Size
31.75 mm
