Globe IB413T Bronze Globe Valve

Name: Globe IB413T Bronze Globe Valve
Brand: Caylor Industrial Sales, Inc.
SKU: VAL-cdf298
Price: 129.99 USD
Availability: OutOfStock

SKU:VAL-cdf298

High-performance Globe Valve with Bronze Construction and Threaded Ends, ideal for heavy-duty applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

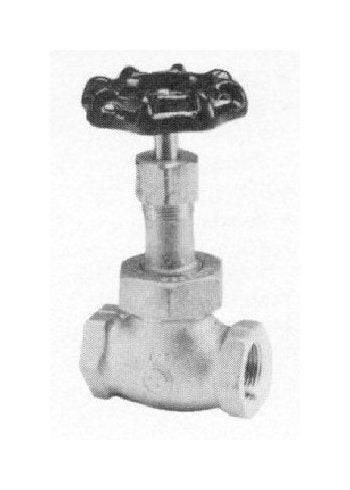

The Globe IB413T Bronze Globe Valve is designed for heavy-duty service, featuring a 150 lb SWP and 300 lb WOG capacity. With a Teflon disc, union bonnet, and bronze construction, this valve ensures durability and efficiency. Threaded ends and compliance with MSS SP-80 standards make it ideal for various applications in the industrial sector.

Product Specifications

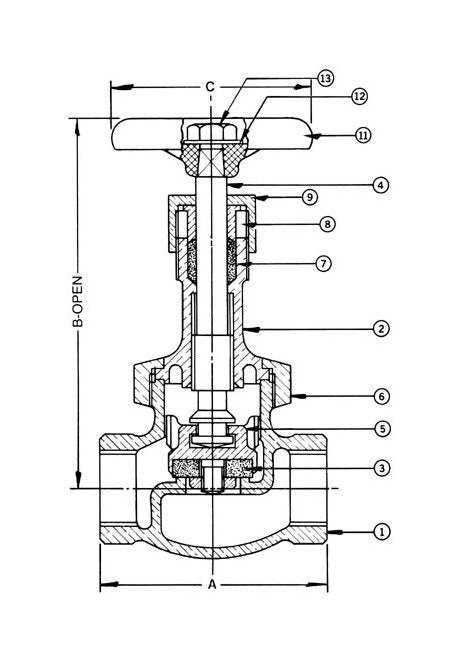

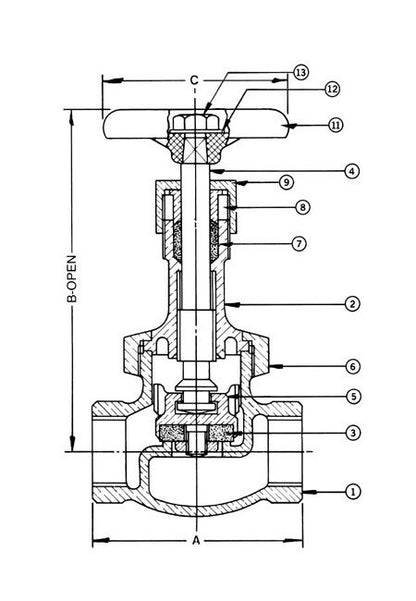

Material List 0

No. Part Material Specification 1 Body Bronze ASTM B 62 2 Bonnet Bronze ASTM B 62 3 Disc Teflon 4 Stem Bronze ASTM B 62 5 Disc Holder Bronze ASTM B 161/4" to 3/4" ASTM B 621" and 3" Incl. 6 Union Bonnet Nut Bronze ASTM B 62 7 Packing Non-Asbestos Commercial 8 Gland Brass ASTM B 124 C37700 9 Packing Nut Brass ASTM B 283 C37700 10 Disc Nut Bronze Commercial 11 Handwheel Mall. Iron Commercial 12 Identification Plate Aluminum Commercial 13 Handwheel Nut Brass Commercial

Specifications Dimension A

61.93 mm

Specifications Dimension B

115.90 mm

Specifications Dimension C

63.50 mm

Specifications Material

Bronze

Specifications Size

12.70 mm

Globe IB413T Bronze Globe Valve
