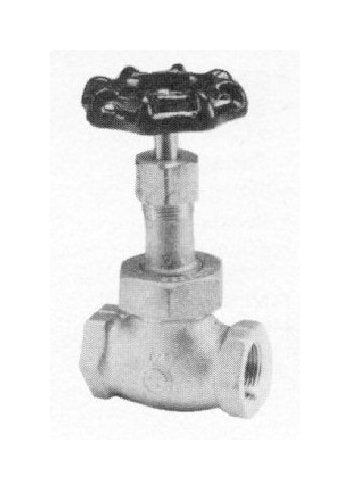

Globe IB413T Bronze Globe Valve 6.35mm
Globe IB413T Bronze Globe Valve 6.35mm
SKU:VAL-8d4f63
Heavy-duty Globe IB413T Bronze Valve for tough applications, pressure rating 150 lb. SWP, 300 lb. WOG, Teflon disc, union bonnet, threaded ends. ASTM B 62 compliant.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Globe IB413T Bronze Globe Valve 6.35mm
$149.99
Quantity: 1
Claim Your Seller Account
Globe IB413T Bronze Globe Valve 6.35mm
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Globe IB413T Bronze Valve is a heavy-duty service valve designed for reliability and durability. With a pressure rating of 150 lb. SWP and 300 lb. WOG, this valve is suitable for tough applications. It features a Teflon disc, union bonnet, and threaded ends. Made of high-quality bronze material, it meets ASTM B 62 standards for the body and bonnet, ensuring long-lasting performance. The valve also conforms to MSS SP-80 Type 2, Class 150 for threaded ends. Ideal for industrial and institutional use.
Product Specifications

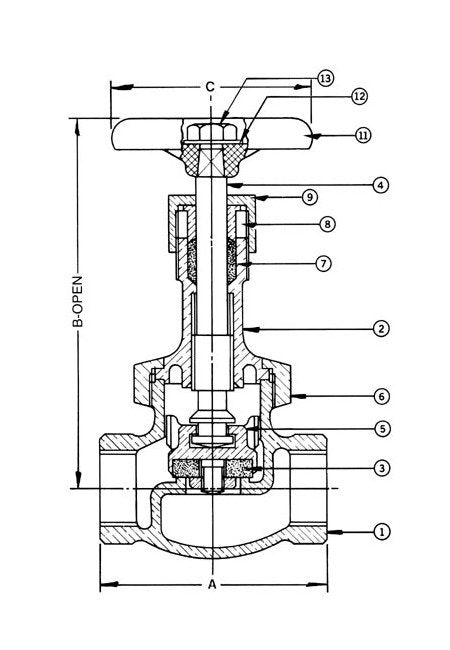

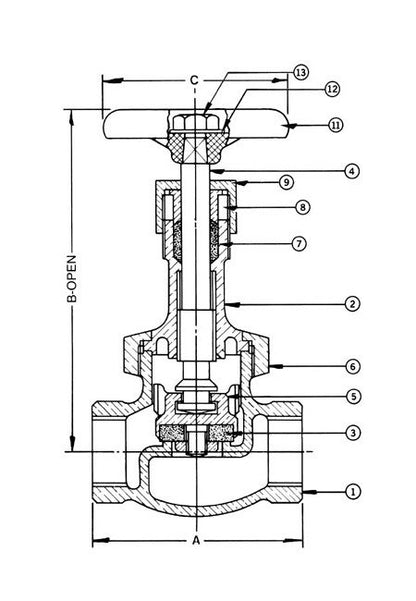

Material List 0
No. Part Material Specification 1 Body Bronze ASTM B 62 2 Bonnet Bronze ASTM B 62 3 Disc Teflon 4 Stem Bronze ASTM B 62 5 Disc Holder Bronze ASTM B 161/4" to 3/4" ASTM B 621" and 3" Incl. 6 Union Bonnet Nut Bronze ASTM B 62 7 Packing Non-Asbestos Commercial 8 Gland Brass ASTM B 124 C37700 9 Packing Nut Brass ASTM B 283 C37700 10 Disc Nut Bronze Commercial 11 Handwheel Mall. Iron Commercial 12 Identification Plate Aluminum Commercial 13 Handwheel Nut Brass Commercial
Specifications Dimension A
52.40 mm
Specifications Dimension B
100.03 mm
Specifications Dimension C
50.80 mm
Specifications Material
Bronze
Specifications Size
6.35 mm
