Globe IB413T Bronze Globe Valve 76.20mm
Globe IB413T Bronze Globe Valve 76.20mm
SKU:VAL-9d8234
Heavy-duty Globe IB413T Bronze Valve for reliable high-pressure services. Conforms to MSS SP-80 Type 2, Class 150.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Globe IB413T Bronze Globe Valve 76.20mm
$299.99
Quantity: 1
Claim Your Seller Account
Globe IB413T Bronze Globe Valve 76.20mm
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

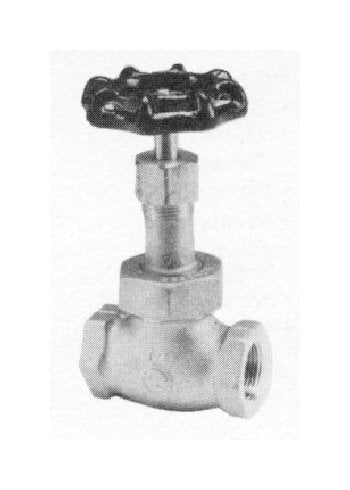

The Globe IB413T Bronze Valve is a heavy-duty solution designed for demanding services. Made of high-quality bronze, it features a Teflon disc, union bonnet, and threaded ends. With 150 lb. SWP and 300 lb. WOG ratings, this valve conforms to MSS SP-80 Type 2, Class 150 standards, ensuring reliability and durability. Its precise dimensions (203.20mm A, 307.98mm B, 152.40mm C) make it suitable for various applications.
Product Specifications
Material List 0

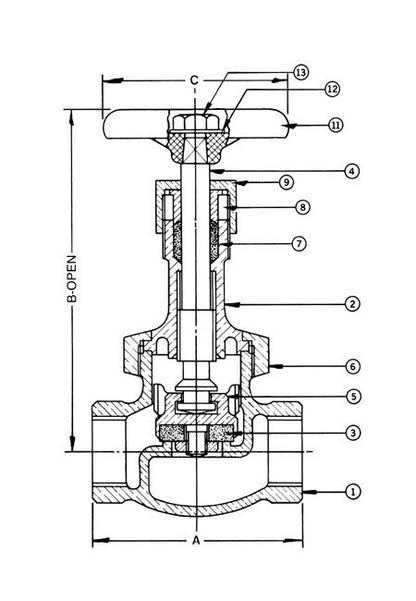

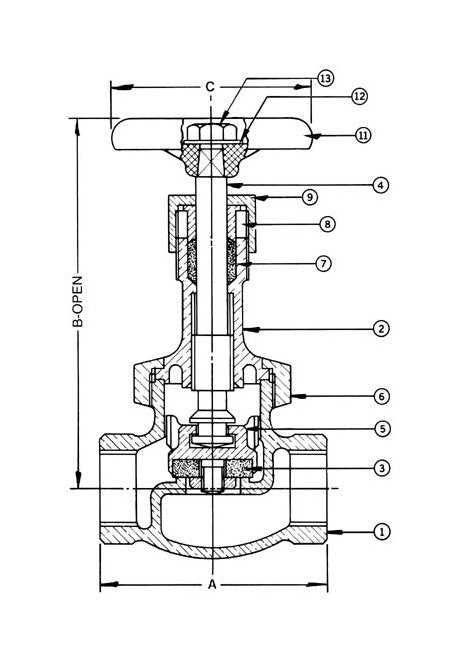

No. Part Material Specification 1 Body Bronze ASTM B 62 2 Bonnet Bronze ASTM B 62 3 Disc Teflon 4 Stem Bronze ASTM B 62 5 Disc Holder Bronze ASTM B 161/4" to 3/4" ASTM B 621" and 3" Incl. 6 Union Bonnet Nut Bronze ASTM B 62 7 Packing Non-Asbestos Commercial 8 Gland Brass ASTM B 124 C37700 9 Packing Nut Brass ASTM B 283 C37700 10 Disc Nut Bronze Commercial 11 Handwheel Mall. Iron Commercial 12 Identification Plate Aluminum Commercial 13 Handwheel Nut Brass Commercial
Specifications Dimension A
203.20 mm
Specifications Dimension B
307.98 mm
Specifications Dimension C
152.40 mm
Specifications Material
Bronze
Specifications Size
76.20 mm
