Globe IB413T Bronze Threaded Globe Valve
Globe IB413T Bronze Threaded Globe Valve
SKU:VAL-48b7d2
Heavy-duty Globe IB413T Bronze Valve with Teflon disc and union bonnet, meets MSS SP-80 standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Globe IB413T Bronze Threaded Globe Valve
$99.99
Quantity: 1
Claim Your Seller Account
Globe IB413T Bronze Threaded Globe Valve
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

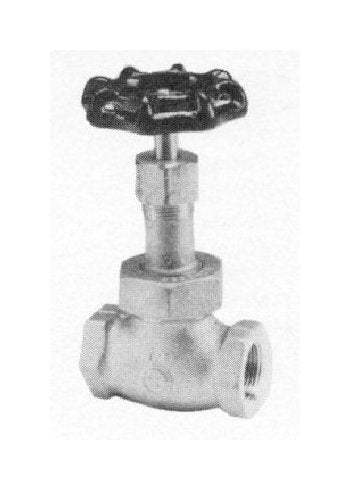

The Globe IB413T Bronze Valve is designed for heavy-duty service, featuring a Teflon disc, union bonnet, and gland packing. With a pressure rating of 150 lb. SWP and 300 lb. WOG, this valve meets MSS SP-80 Type 2, Class 150 standards. Crafted from high-quality bronze materials, this valve offers durability and reliability for a range of applications.
Product Specifications

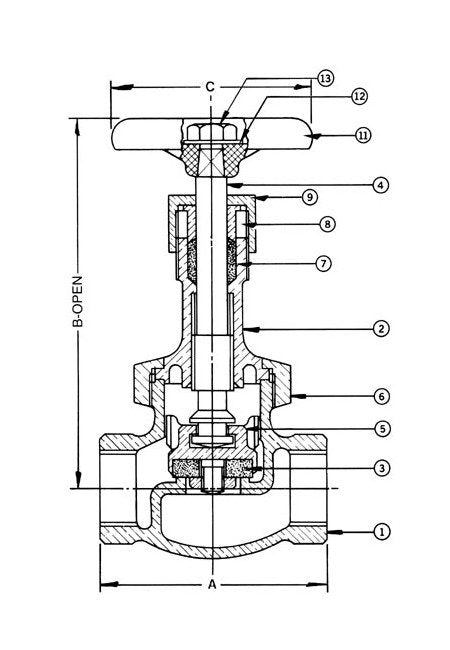

Material List 0
No. Part Material Specification 1 Body Bronze ASTM B 62 2 Bonnet Bronze ASTM B 62 3 Disc Teflon 4 Stem Bronze ASTM B 62 5 Disc Holder Bronze ASTM B 161/4" to 3/4" ASTM B 621" and 3" Incl. 6 Union Bonnet Nut Bronze ASTM B 62 7 Packing Non-Asbestos Commercial 8 Gland Brass ASTM B 124 C37700 9 Packing Nut Brass ASTM B 283 C37700 10 Disc Nut Bronze Commercial 11 Handwheel Mall. Iron Commercial 12 Identification Plate Aluminum Commercial 13 Handwheel Nut Brass Commercial
Specifications Dimension A
114.30 mm
Specifications Dimension B
180.98 mm
Specifications Dimension C
95.25 mm
Specifications Material
Bronze
Specifications Size
38.10 mm
