Globe IB413T Bronze Valve 25.40mm
Globe IB413T Bronze Valve 25.40mm
SKU:VAL-ece6c7
Heavy-duty Globe IB413T Bronze Valve 25.40mm for industrial use, offering precise control and durability.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Globe IB413T Bronze Valve 25.40mm
$89.99
Quantity: 1
Claim Your Seller Account
Globe IB413T Bronze Valve 25.40mm
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

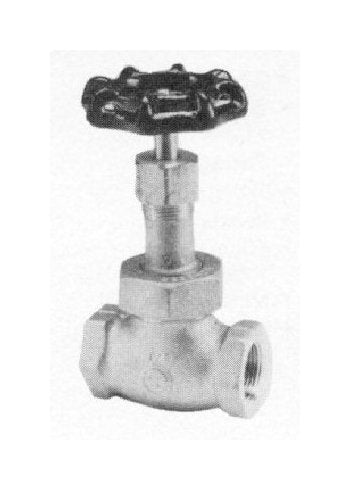

The Globe IB413T Bronze Valve is a heavy-duty threaded globe valve designed for superior service in industrial applications. Constructed with bronze body and bonnet, Teflon disc, and bronze stem, this valve ensures durability and reliability. With a union bonnet, gland packed design, and conforming to MSS SP-80 Type 2 Class 150 standards, it guarantees optimal performance. Ideal for 150 lb. SWP and 300 lb. WOG (Non-Shock) applications, this valve offers precision control and long-lasting functionality.
Product Specifications

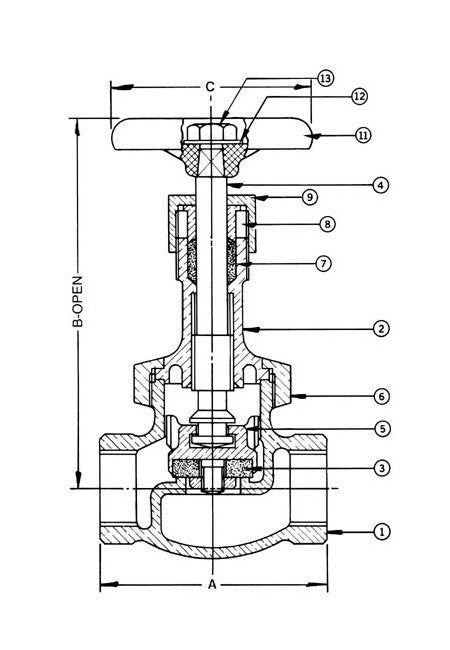

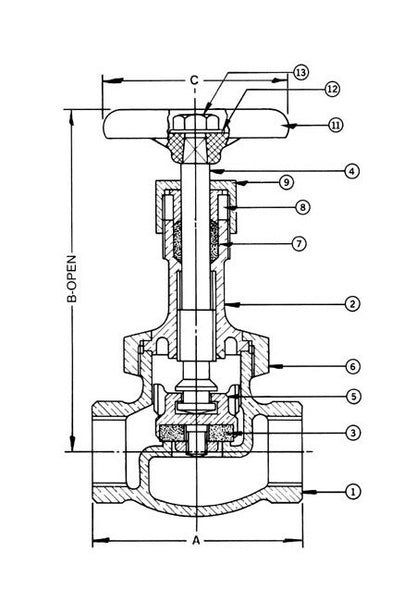

Material List 0
No. Part Material Specification 1 Body Bronze ASTM B 62 2 Bonnet Bronze ASTM B 62 3 Disc Teflon 4 Stem Bronze ASTM B 62 5 Disc Holder Bronze ASTM B 161/4" to 3/4" ASTM B 621" and 3" Incl. 6 Union Bonnet Nut Bronze ASTM B 62 7 Packing Non-Asbestos Commercial 8 Gland Brass ASTM B 124 C37700 9 Packing Nut Brass ASTM B 283 C37700 10 Disc Nut Bronze Commercial 11 Handwheel Mall. Iron Commercial 12 Identification Plate Aluminum Commercial 13 Handwheel Nut Brass Commercial
Specifications Dimension A
87.33 mm
Specifications Dimension B
139.70 mm
Specifications Dimension C
79.38 mm
Specifications Material
Bronze
Specifications Size
25.40 mm
