Globe IB413T Bronze Valve - 63.50 mm
Globe IB413T Bronze Valve - 63.50 mm
SKU:VAL-45c26c
Durable Globe IB413T Bronze Valve for heavy-duty service applications. Meets MSS SP-80 standards. Size: 63.50 mm.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Globe IB413T Bronze Valve - 63.50 mm
$129.99
Quantity: 1
Claim Your Seller Account
Globe IB413T Bronze Valve - 63.50 mm
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

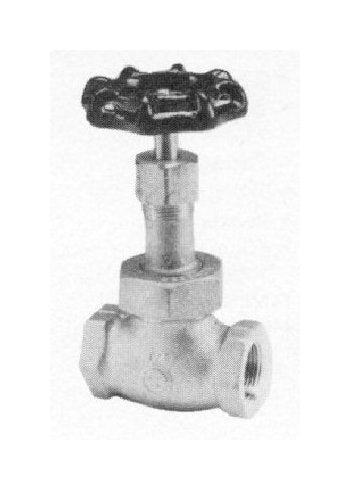

The Globe IB413T Bronze Valve is a robust and reliable solution for heavy-duty service applications. With 150 lb. SWP and 300 lb. WOG ratings, this valve features a Teflon disc, union bonnet, and threaded ends for secure connections. Crafted from high-quality bronze materials, it meets MSS SP-80 Type 2 Class 150 standards, ensuring durability and efficiency in operation. Ideal for both consumer and institutional use, this valve offers precise control and long-term performance.
Product Specifications

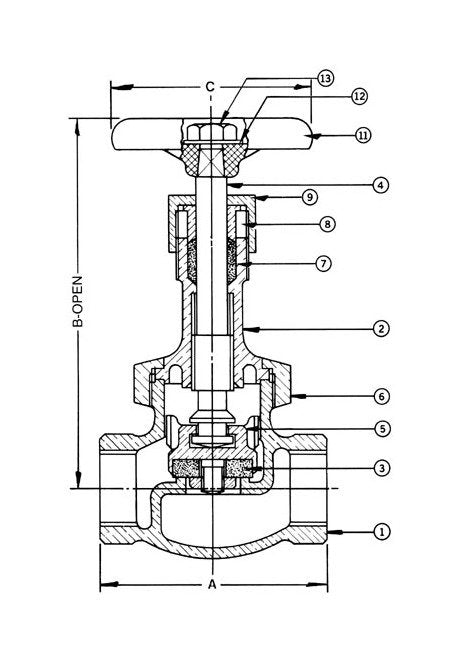

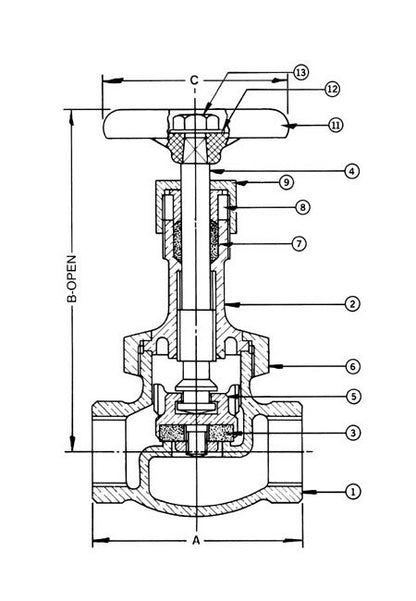

Material List 0
No. Part Material Specification 1 Body Bronze ASTM B 62 2 Bonnet Bronze ASTM B 62 3 Disc Teflon 4 Stem Bronze ASTM B 62 5 Disc Holder Bronze ASTM B 161/4" to 3/4" ASTM B 621" and 3" Incl. 6 Union Bonnet Nut Bronze ASTM B 62 7 Packing Non-Asbestos Commercial 8 Gland Brass ASTM B 124 C37700 9 Packing Nut Brass ASTM B 283 C37700 10 Disc Nut Bronze Commercial 11 Handwheel Mall. Iron Commercial 12 Identification Plate Aluminum Commercial 13 Handwheel Nut Brass Commercial
Specifications Dimension A
171.45 mm
Specifications Dimension B
269.88 mm
Specifications Dimension C
133.35 mm
Specifications Material
Bronze
Specifications Size
63.50 mm
