GMC 10x54 Vertical Milling Machine with DRO and Table Power Feed
GMC 10x54 Vertical Milling Machine with DRO and Table Power Feed
SKU:MIL-6d8bb2
Enhance precision and efficiency with the GMC 10x54 Vertical Milling Machine, built to meet top industry standards.
Regular price
$16,999.00
Regular price
Sale price
$16,999.00
Unit price
per
Initiate Order
GMC 10x54 Vertical Milling Machine with DRO and Table Power Feed
$16,999.00
Quantity: 1
Claim Your Seller Account
GMC 10x54 Vertical Milling Machine with DRO and Table Power Feed
$16,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

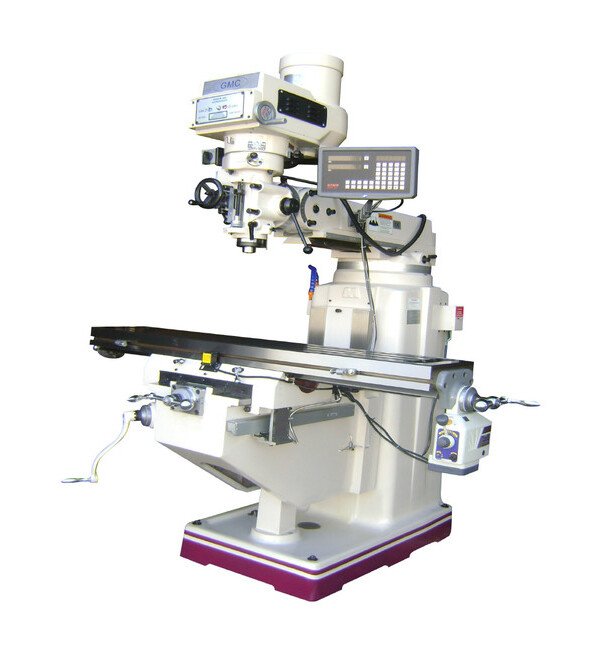

The GMC Manual Knee Type Vertical Milling Machine is a reliable industrial workhorse designed for precision milling tasks. Made in Taiwan with 'Meehanite' casting and ISO 9001 certification, it meets the highest industry standards. Featuring a robust 3 HP AC spindle motor, mechanical variable spindle speeds from 70 to 4,300 rpm, and hardened & ground ways for durability and accuracy. With a host of features like adjustable ways, one shot lube system, and a year industrial warranty, this machine is a powerhouse for machining applications in various settings.
Product Specifications
Features Features
Made in Taiwan"Meehanite" castingTurcite âBâ coating on X/Y ways like CNC millsISO 9001 certifiedMechanical variable spindle speeds from 70-4,300 rpmHeavy duty 3 HP AC spindle motor, 3 phaseHeavy Duty high grade castingsHardened & ground ways, square ways on knee and columnHardened & ground table and Ground table T-slotsPrecision ground ACME LeadscrewsChromed ground quill ( spindle )Chromed dialsAdjustable waysHand brake on mill headTilting & rotating headManual or automatic quill feeds 0.0015â , 0.003â, 0.006â per spindle revolutionOne shot lube systemfront and rear rubber chip guards, and (1) manual draw barTool box kit and leveling padsPower source 220V OR 440V , 3 phaseOne year industrial warranty for parts
Technical Specs Brands
GMC
Technical Specs Head Swivel Left Hand Lh In Degrees
90 º
Technical Specs Head Swivel Right Hand Rh In Degrees
90 º
Technical Specs Included Items
Digital Readout | Draw bar | One shot lube | Rubber way covers | Table power feed X | Tool box
Technical Specs Item Number
GMM-1054VPKG
Technical Specs Net Weight
3250 lb
Technical Specs Quill Spindle Diameter
3-3/8 in
Technical Specs Quill Spindle Travel
5 in
Technical Specs Ram Travel
18 in
Technical Specs Spindle Motor Power
3 hp
Technical Specs Spindle Speeds
70 to 4300 rpm
Technical Specs Spindle Taper
R8
Technical Specs Table Load Capacity
750 lb
Technical Specs Table Size
10 x 54 in
Technical Specs X Axis Travel
36 1/2 in
Technical Specs Y Axis Travel
16 in
Technical Specs Z Axis Travel
16 in
