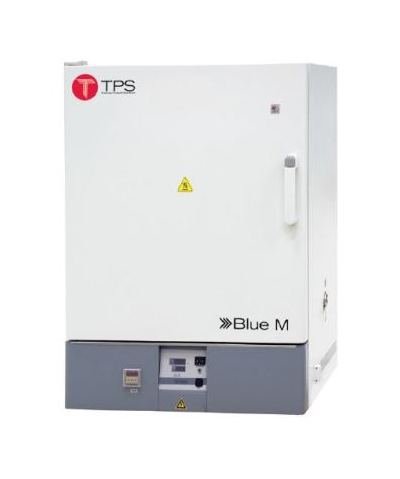

Blue M Gravity Ovens are value-priced gravity convection ovens for many industrial uses such as drying and baking. Gravity Ovens are designed for applications where a fan or other air flow would disturb the thermal process, such as processing of lightweight materials or powders. Gravity Ovens are designed for applications that require less temperature uniformity than other types of mechanical convection ovens. Each gravity oven model generates a unique natural air convection supply through perforated stainless steel shelves to achieve temperature uniformity without blowers.
Product Specifications
Specifications Air Flow
Vertical - Up
Specifications Ambient Temperature Range
10 to 260 ºC | 20 to 500 ºF
Specifications Available Slots
12
Specifications Control Interface
High-Quality Digital PID Temperature Controller
Specifications Control Tolerance
0 to 1 ºC
Specifications Exterior Depth
27.2 in | 690 mm
Specifications Exterior Height
41.1 in | 1045 mm
Specifications Exterior Width
29.5 in | 750 mm
Specifications Features
Adjustable shelving provides flexible workspace configuration | Stainless steel interior with powder-coated exterior for durability | Vertical up-gravity convection air flow allows for tighter temperature uniformity | 2 Perforated shelves for increased air flow and uniformity | Independent and adjustable over-temperature protection provides extra assurance against damage to load and oven | Stainless steel interior | Range of sizes | Over-temperature protection | Maximum temperature: 260°C | Minimum temperature: ambient +10°C
Specifications Frequency
60 Hz
Specifications Heating Method
Vertical Up-Gravity Convection
Specifications Heating Rate Ambient Temperature To Maximum Tempe
0 to 100 m
Specifications Interior Depth
17.7 in | 450 mm
Specifications Interior Height
21.6 in | 550 mm
Specifications Interior Material
Stainless Steel
Specifications Interior Width
21.6 in | 550 mm
Specifications Maximum Shelves
5
Specifications Options
Additional perforated shelves
Specifications Performance
Temperature Fluctuation: Less than or equal to ± 1°C | Heating Rate: Less than or equal to 100 Minutes from Ambient to Maximum Temperature | Control Interface: High-quality digital PID temperature controller | Temperature Control Mode: Setpoint operation | Heating Method: Gravity Convection | Air flow: Vertical Up | Temperature Uniformity: Less than or equal to ± 3%
Specifications Phase
1
Specifications Rated Power
2 kW
Specifications Rated Voltage
230 V
Specifications Shelf Spacing
1.5 in
Specifications Shelves
2
Specifications Standard Models
Economy Model: Timer Standard
Specifications Temperature Control Mode
Setpoint Operation
Specifications Temperature Uniformity
0 to 3 %
Specifications Workspace Capacity
4.8 ft³
