GO BP-3 Stainless Steel Adjustable Back Pressure Regulator
GO BP-3 Stainless Steel Adjustable Back Pressure Regulator
SKU:GOP-4e995a
Precision-engineered stainless steel back pressure regulator for accurate pressure control in gas and liquid systems.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
GO BP-3 Stainless Steel Adjustable Back Pressure Regulator
$299.99
Quantity: 1
Claim Your Seller Account
GO BP-3 Stainless Steel Adjustable Back Pressure Regulator
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO BP-3 Stainless Steel Adjustable Back Pressure Regulator is a precision-engineered regulator designed for both liquid and gas services in instrumentation systems. Crafted with high-quality materials including 316L Stainless Steel and PTFE, this regulator offers precise throttling action for superior pressure control. Its innovative design ensures efficient regulation of inlet pressure, enhancing system performance and safety. With features like bubble-tight shutoff and compatibility with gas or liquid services, this regulator is ideal for analytical instrumentation, gas and liquid sampling, petrochemical applications, and more.
Product Specifications
Features And Benefits Features And Benefits
Only 316L stainless steel and Polytetrafluoroethylene (PTFE) in flow streamBubble tight shutoffGas or liquid service
Note Note
The choices above represent an abbreviated list of the more commonly ordered options.
Options Options
Wetted materials of construction brass, Monel®, Hastelloy® C-276, titaniumExtra portsPanel mount (requires a 1 3/8"mounting hole)High purity connectionsPressure gauges
Specifications Actuator Material
High Density Polytetrafluoroethylene (PTFE)
Specifications Body Material
316L Stainless Steel, Stainless Steel Backing
Specifications Cap Assembly
Standard
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 25 psig
Specifications Diaphragm Backing Material
Metal Backing
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.2
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)

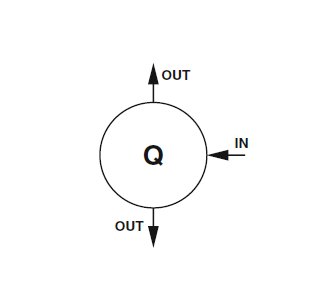

Specifications Port Configuration
Q - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Weight
1.9 lb | 0.86 kg
Technical Data Operating Temperature
-40 to +500 ºF | -40 to +260 ºC
Technical Data Optional Various Orifice Sizes
0.005 | 0.01 | 0.025 | 0.03 | 0.04 | 0.05 | 0.06 | 0.095 | 0.12 | 0.24 | 0.3
Applications Applications
Analytical instrumentationGas and liquid samplingPetrochemical industryAir compressorsResearch labsPilot plants
