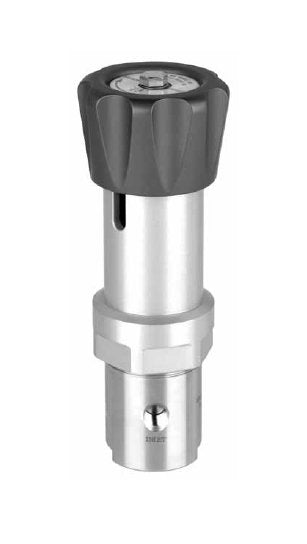

GO BP-66 High Back Pressure Regulator
GO BP-66 High Back Pressure Regulator
SKU:GOP-5863bf
Reliable GO BP-66 regulator for precise back pressure control in high-pressure systems. Stainless steel construction with wide control range.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
GO BP-66 High Back Pressure Regulator
$349.99
Quantity: 1
Claim Your Seller Account
GO BP-66 High Back Pressure Regulator
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO BP-66 High Back Pressure Regulator is a robust solution designed for systems with high pressures and low to moderate flows. Featuring a piston sensing mechanism for high pressure relief and a Polyimide/stainless seat assembly for reliable shutoff, this regulator offers excellent sensitivity and a wide control range of 0 to 10,000 psig. Ideal for research and pilot plant facilities, it boasts a durable 316L stainless steel body, aluminum cap assembly, and a spring-loaded piston sensor for precise control. With options for different body constructions and connection types, this regulator is versatile and dependable for gas and liquid services.
Product Specifications
Features And Benefits Features And Benefits
Spring-loaded piston sensorGas and liquid serviceFluorocarbon (FKM) seals (other elastomers optional)
Note Note
The choices above represent an abbreviated list of the more commonly ordered options.
Options Options
Panel mountingMonel® and titanium body constructionCv of 0.01 or 0.12AN 10050-4, SAE J514, MS 33649 or 3/8" FNPT connections
Specifications Actuator Material
Polyimide
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Panel Mount, Aluminum
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 10,000 psig
Specifications Flow Coefficient Cv
0.12
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)
Specifications Piston Material
Stainless Steel with Standard Fluorocarbon (FKM) Cavity O-Ring
Specifications Piston Type
Standard
Specifications Port Configuration
Standard
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Weight
4.4 lb | 2.0 kg
Technical Data Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT) (Standard) Aerospace Standard (AS) 10050-4, Society of Automotive Engineers (SAE) J514, Military Standard (MS) 33649, or 3/8" Female National Pipe Tapered (FNPT) (Optional)
Technical Data Operating Temperature
-40 to +350 ºF | -40 to +177 ºC
Applications Applications
Pilot plantsResearch labs
