GO PR-1 316 Stainless Steel Single Stage Regulator
GO PR-1 316 Stainless Steel Single Stage Regulator
SKU:GOP-e9cbb1
Versatile stainless steel single stage regulator, precise pressure control for gas or liquid service, compliant with industry standards.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
GO PR-1 316 Stainless Steel Single Stage Regulator
$199.99
Quantity: 1
Claim Your Seller Account
GO PR-1 316 Stainless Steel Single Stage Regulator
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO PR-1 316 Stainless Steel Single Stage Regulator is a versatile pressure reducing regulator ideal for a wide range of applications, from instrumentation sample systems to semiconductor processing gases. With features like stainless steel caps, adjustable outlet pressure ranges up to 750 psig, and operating temperatures ranging from -40°F to +500°F, this regulator offers precise pressure control at low to moderate flows in gas or liquid service. It meets stringent industry standards with a Cv flow coefficient of 0.06 and ensures durability with a body material of 316L stainless steel and a stainless steel diaphragm.
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, INCONEL®, PTFE, and Tefzel® (or optional main seat material choice) only in flow streamStainless steel cap with SS adjusting screwInlet pressures of up to 6000 psiAdjustable outlet pressure ranges of 0-10, 0-25, 0-50, 0-100, 0-250, 0-500, and 0-750 psigOperating temperatures of -40 °F up to +500 °F (-40 °C up to +260 °C)Bubble-tight shutoff under most conditionsCv flow coefficients 0.025, 0.06, 0.20, and 0.50 (0.06 Standard)
Options Options
Wetted materials of construction: MONEL®, HASTELLOY®, Titanium and 6MOPanel mount (13/8" mounting hole)Special diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relievingCMTR
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Facing Material
Metal Backing, Standard
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.06, Standard
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port, Standard
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 25 psig
Specifications Port Configuration

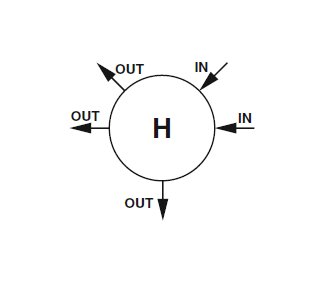

H - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Polyetheretherketone (PEEK) High Temp Service, Metal Knob
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Type Of Service
Gas or Liquid
Specifications Weight
1.9 lb | 0.86 kg
