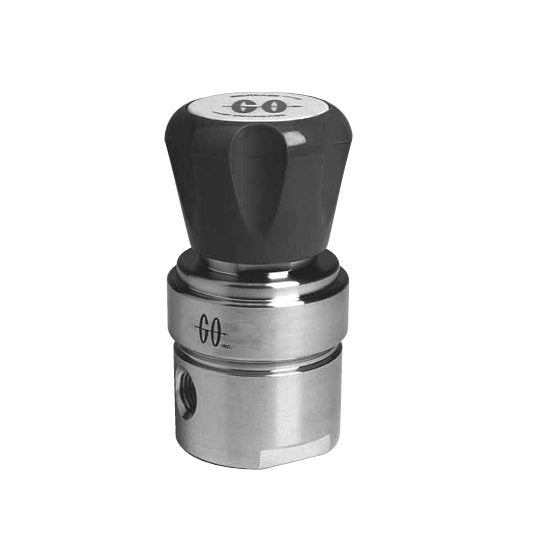

GO PR-5 High Flow Adjustable Pressure Reducing Regulator
GO PR-5 High Flow Adjustable Pressure Reducing Regulator
SKU:GOP-0db9be
Experience precise pressure control with the GO PR-5 High Flow Regulator, ideal for high-flow applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
GO PR-5 High Flow Adjustable Pressure Reducing Regulator
$289.99
Quantity: 1
Claim Your Seller Account
GO PR-5 High Flow Adjustable Pressure Reducing Regulator
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO PR-5 High Flow Adjustable Pressure Reducing Regulator is expertly designed for high-flow applications, ensuring exceptional sensitivity and precise regulation. Originally intended for gas systems, it is also compatible with liquid systems meeting material compatibility requirements. With a compact size and stainless steel construction, this regulator offers optimal control even at high flow rates, making it a versatile choice for various industrial applications. The regulator features a stainless steel cap, bubble-tight shutoff, and a standard diaphragm made of Polytetrafluoroethylene (PTFE) for reliable performance.
Product Specifications
Features And Specifications Features And Specifications
High flow capability in compact sizeMinimum droop with large flow increasesBubble-tight shutoffStainless steel cap and adjusting screwMaterials of construction: stainless steel, Brass, MONEL®, HASTELLOY® C, Brass chrome platedOperating temperatures up to +400 °F (+204 °C)Ideal for line regulator applicationsPolytetrafluoroethylene (PTFE)/Fluorocarbon (FKM) diaphragm standard up to 50 psigInlet pressure 300 psigAdjustable outlet ranges 0-10, 0-25, 0-50, 0-100, and 0-250 psig
Options Options
Panel mount (requires 1 3/8" mounting hole)Extra portsPressure gaugesCaptured vent
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Metal Backing
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.2
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port
Specifications Inlet Filter
20 µm
Specifications Outlet Range
0 to 10 psig
Specifications Port Configuration

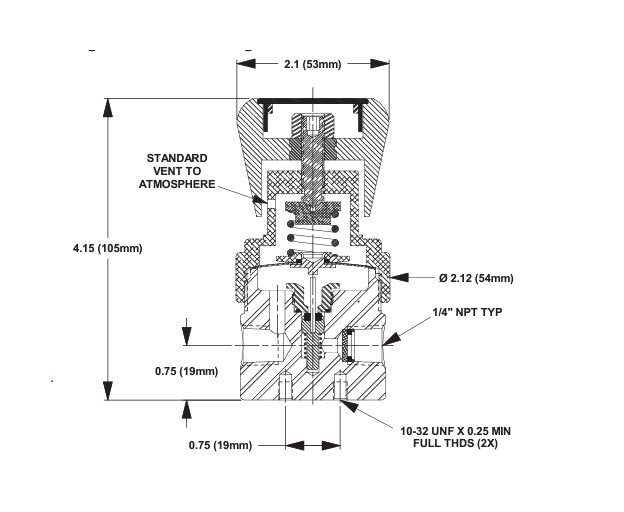

F - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Fluorocarbon (FKM) (Standard)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra | Standard
Specifications Weight
1.9 lb | 0.86 kg
