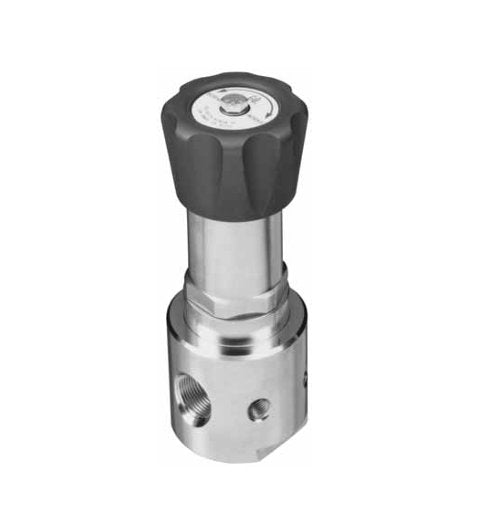

GO PR-59 High Pressure Regulator
GO PR-59 High Pressure Regulator
SKU:GOP-fe84e8
The GO PR-59 High Pressure Regulator - precise control up to 4000 psig, durable stainless steel construction, reliable performance for gas and liquid systems.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
GO PR-59 High Pressure Regulator
$299.99
Quantity: 1
Claim Your Seller Account
GO PR-59 High Pressure Regulator
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO PR-59 High Pressure/High Flow Single Stage Regulator is engineered to handle pressures up to 4000 psig with precision control. Constructed from durable 316L stainless steel and featuring a balanced poppet valve design, this regulator ensures constant pressure regulation for gas streams and compatible liquid systems. The fluorocarbon seals and Polychlorotrifluoroethylene seat assembly provide reliable performance, while the optional self-relieving feature enhances safety measures. Suitable for a wide range of applications, this regulator offers a Cv flow coefficient of 1.2 and exceptional sensitivity even at low outlet pressures.
Product Specifications
Features And Specifications Features And Specifications
316L stainless steel, Brass and MONEL® body constructionInlet pressure capability up to 4000 psigOutlet control ranges from 250 psig up to 4000 psigOptional self-relieving featureInlet and outlet ports of 1/2" or 3/4" FNPT with 1/4" FNPT gauge ports optional1/2" FNPT standardBalanced poppet valve design for constant pressure controlFluorocarbon (FKM) seals (other elastomers optional)Polychlorotrifluoroethylene (PCTFE) seat
Note Note
Contact the factory for any additional requirements.
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Plastic Knob, Stainless Steel
Specifications Flow Coefficient Cv
1.2
Specifications Gauge Port Types
1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports
Specifications Operating Temperature
-40 to +175 ºF | -40 to +80 ºC
Specifications Outlet Range
0 to 4000 psig
Specifications Piston Material
Stainless Steel
Specifications Piston Type
Non-Self-Relieving
Specifications Port Configuration
Standard
Specifications Process Port Types
1/2 in. Female National Pipe Tapered (FNPT)
Specifications Seat Material
Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-F® 81)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
4.6 lb | 2.1 kg
