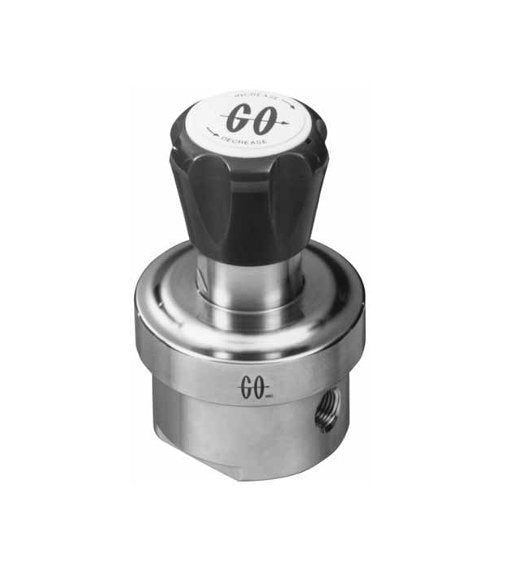

GO PR-7LF High Sensitivity Regulator - 0.025 Cv
GO PR-7LF High Sensitivity Regulator - 0.025 Cv
SKU:GOP-158b90
Achieve precise low outlet pressure control with the GO PR-7LF Regulator - ideal for analytical instrumentation.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
GO PR-7LF High Sensitivity Regulator - 0.025 Cv
$259.99
Quantity: 1
Claim Your Seller Account
GO PR-7LF High Sensitivity Regulator - 0.025 Cv
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO PR-7LF High Sensitivity Single Stage Pressure Reducing Regulator is specially designed to provide precise low outlet pressure control, making it ideal for analytical instrumentation applications. With a large diaphragm sensing area and low flow seat assembly, this regulator offers pressure control down to 10 inches of water. Available in stainless steel or brass construction, with special alloys upon request, it features a Cv flow coefficient of 0.025, adjustable outlet pressure ranges, and high-quality materials ensuring reliability and performance in diverse settings.
Product Specifications
Features And Specifications Features And Specifications
Sensitive pressure controlLow pressure adjustabilityStainless steel or Brass construction (optional MONEL® or HASTELLOY® C construction)Inlet pressure to 3600 psigAdjustable outlet pressure ranges 0 - 6, 0 - 25, 0 - 50, 0 - 75, 0 - 125, 0 - 250 psig and 500 psigCv flow coefficients of 0.025; 0.06; 0.20; 0.50Polytetrafluoroethylene (PTFE)/Fluorocarbon (FKM) diaphragm available up to 25 psig316L stainless steel or brass, INCONEL® and Tefzel®
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Metal Backing, Standard
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.025
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port
Specifications Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT) Standard
Specifications Inlet Filter
20 µm
Specifications Operating Temperature
-40 to +250 ºF | -40 to +121 ºC
Specifications Outlet Range
0 to 6 psig
Specifications Port Configuration
Standard
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Polychlorotrifluoroethylene (PCTFE) (Formerly Kel-F® 81)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
3.2 lb | 1.45 kg
