GO PR-9 High Temp Stainless Steel Pressure Regulator - 0-250 psig
GO PR-9 High Temp Stainless Steel Pressure Regulator - 0-250 psig
SKU:GOP-f0f4db
Precision stainless steel pressure regulator designed for high-temp applications, ensuring reliable performance in extreme conditions.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
GO PR-9 High Temp Stainless Steel Pressure Regulator - 0-250 psig
$349.99
Quantity: 1
Claim Your Seller Account
GO PR-9 High Temp Stainless Steel Pressure Regulator - 0-250 psig
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

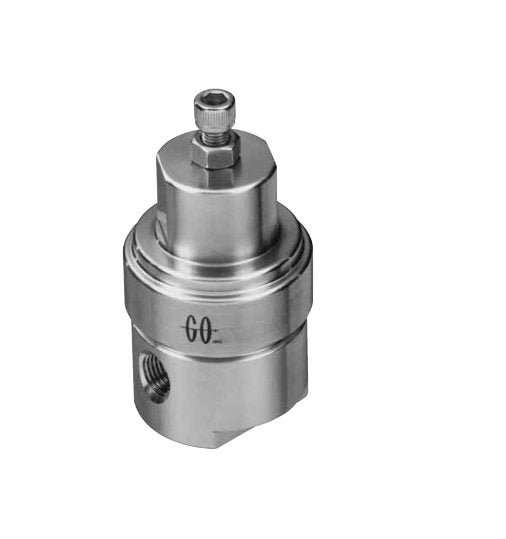

The GO PR-9 High Temperature Single Stage Stainless Steel Pressure Regulator is engineered for precise gas and liquid pressure control in extreme temperatures up to 1000°F. With all metal components ensuring extended reliability, this regulator is ideal for high-temperature ambient and process applications where elastomers are restricted. Features metal-to-metal seat, adjustable outlet pressure ranges, and multiple inlet/outlet connection options for versatile industrial use.
Product Specifications
Features And Specifications Features And Specifications
650 °F (340 °C) or 1000 °F (540 °C)All metal construction, no elastomersInlet pressure 3000 psig at 650 °F (343 °C), 1500 psig at 1000 °F (538 °C)Adjustable outlet pressure ranges of 0-25, 0-50, 0-100 and 0-250 psigStainless steel (316L or 347), INCONEL®, tungsten carbide in flow streamCv flow coefficient of 0.06 and 0.2Metal-to-metal seat seal
Note Note
Contact the factory for any additional requirements
Options Options
3/8" FNPT connectionPanel mount (requires 13/8" mounting hole)Extra inlet and outlet ports
Specifications Body Material
316L Stainless Steel (650 °F)
Specifications Cap Assembly
Panel Mount, Stainless Steel
Specifications Diaphragm Linerbacking
Tantalum
Specifications Diaphragm Type
Standard
Specifications Flow Coefficient Cv
0.06
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port
Specifications Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT)
Specifications Operating Temperature
-382 to +1000 ºF | -200 to +540 ºC
Specifications Outlet Range
0 to 250 psig
Specifications Port Configuration

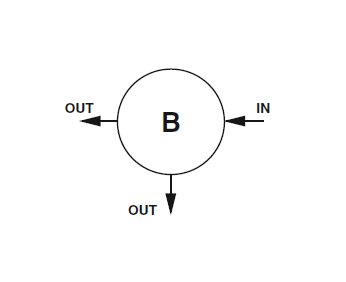

B - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
347 Stainless Steel
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Type Of Service
Gas or Liquid
Specifications Weight
2.1 lb | 0.95 kg
