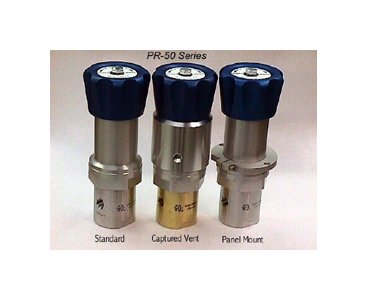

GO Reg PR-50 Series Pressure Regulators
GO Reg PR-50 Series Pressure Regulators
SKU:GOR-ddb5ba
Experience superior pressure control with GO Reg PR-50 Series Regulators. Ideal for industrial applications, these regulators offer precise pressure management up to 1000 psig.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
GO Reg PR-50 Series Pressure Regulators
$279.99
Quantity: 1
Claim Your Seller Account
GO Reg PR-50 Series Pressure Regulators
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Reg PR-50 Series Pressure Regulators are meticulously engineered to meet the stringent demands of industrial applications, offering precise control of outlet pressures up to 1000 psig. Crafted from high-grade 316L stainless steel, these regulators ensure exceptional corrosion resistance for extended operational durability. The optional self-relieving feature enhances safety by venting trapped downstream pressure to the atmosphere. With a 20-micron inlet filter and bubble-tight shutoff, these regulators guarantee peak performance and reliability in gas or liquid service environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
R & D systemsCylinder gas regulationSampling systemsAirline charging cartsPilot plantsOff shore drillings
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, aluminum
Specifications Diaphragm Facing Material
Stainless Steel
Specifications Diaphragm Type
Non-self-relieving
Specifications Flow Coefficient Cv
0.025
Specifications Max Operating Pressure
3600 psig
Specifications Operating Temperature
-40 to 66 ºC | -40 to 150 ºF
Specifications Outlet Range
0 to 1000 psig
Specifications Port Configuration
Standard
Specifications Process Port Type
1/4" FNPT
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra, Standard
Specifications Weight
4.4 lbs
