The GO Regulator BP-3 Stainless Steel Adjustable Back Pressure Regulator is engineered for precise pressure control in both gas and liquid applications. Constructed with 316L stainless steel and PEEK actuator material, it ensures optimal performance and durability. With its bubble-tight shutoff and wide control range of 0 to 100 psig, this regulator is ideal for analytical instrumentation, gas and liquid sampling, petrochemical industries, and more. Enjoy the benefits of superior system pressure regulation and reliable performance with the GO Regulator BP-3.
Product Specifications
Features And Benefits Features And Benefits
Only 316L stainless steel and Polytetrafluoroethylene (PTFE) in flow streamBubble tight shutoffGas or liquid service
Note Note
The choices above represent an abbreviated list of the more commonly ordered options.
Options Options
Wetted materials of construction brass, Monel®, Hastelloy® C-276, titaniumExtra portsPanel mount (requires a 1 3/8"mounting hole)High purity connectionsPressure gaugesPressure Test Certificate
Specifications Actuator Material
Polyetheretherketone (PEEKâ¢)
Specifications Body Material
316L Stainless Steel, Stainless Steel Backing
Specifications Cap Assembly
Standard
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 100 psig
Specifications Diaphragm Backing Material
Metal Backing
Specifications Diaphragm Facing Material
Tefzel® Ring
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.2
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)
Specifications Port Configuration

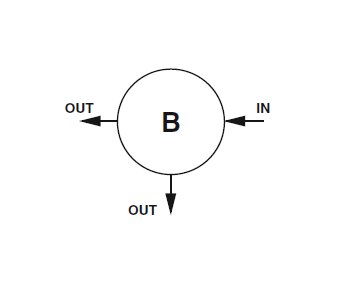

B - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Weight
1.9 lb | 0.86 kg
Technical Data Operating Temperature
-40 to +500 ºF | -40 to +260 ºC
Technical Data Optional Various Orifice Sizes
0.005 | 0.01 | 0.025 | 0.03 | 0.04 | 0.05 | 0.06 | 0.095 | 0.12 | 0.24 | 0.3
Applications Applications
Analytical instrumentationGas and liquid samplingPetrochemical industryAir compressorsResearch labsPilot plants
