GO Regulator BP-3 Stainless Steel Adjustable Back Pressure Regulator

Name: GO Regulator BP-3 Stainless Steel Adjustable Back Pressure Regulator
Brand: Del Val Controls, Inc
SKU: GOP-55900d
Price: 349.99 USD
Availability: OutOfStock

SKU:GOP-55900d

Precision meets reliability with the GO Regulator BP-3 Stainless Steel Back Pressure Regulator. Ideal for versatile pressure control in gas and liquid systems.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The GO Regulator BP-3 Stainless Steel Adjustable Back Pressure Regulator is a versatile solution designed for precise pressure control in both liquid and gas applications within instrumentation systems. Made with high-quality materials like 316L Stainless Steel and Perfluoroelastomer (FFKM) actuator, this regulator offers exceptional throttling action for optimal system pressure regulation. With a Control Range of 0 to 100 psig, it ensures reliable performance in low flow or closed systems, preventing over-pressures effectively. This regulator, featuring a Flow Coefficient (Cv) of 0.2, is suitable for various applications including analytical instrumentation, gas and liquid sampling, petrochemical industry, research labs, and pilot plants.

Product Specifications

Features And Benefits Features And Benefits

Only 316L stainless steel and Polytetrafluoroethylene (PTFE) in flow streamBubble tight shutoffGas or liquid service

Note Note

The choices above represent an abbreviated list of the more commonly ordered options.

Options Options

Wetted materials of construction brass, MonelÂ®, HastelloyÂ® C-276, titaniumExtra portsPanel mount (requires a 1 3/8"mounting hole)High purity connectionsPressure gauges

Specifications Actuator Material

Perfluoroelastomer (FFKM)

Specifications Body Material

316L Stainless Steel, Stainless Steel Backing

Specifications Cap Assembly

Standard

Specifications Cavity Finish

< 25 Ra

Specifications Control Range

0 to 100 psig

Specifications Diaphragm Backing Material

Metal Backing

Specifications Diaphragm Facing Material

TefzelÂ® Ring

Specifications Diaphragm Type

Standard Diaphragm

Specifications Flow Coefficient Cv

0.2

Specifications Gauge Port Size

1/4 in

Specifications Gauge Port Types

Female National Pipe Tapered (FNPT)

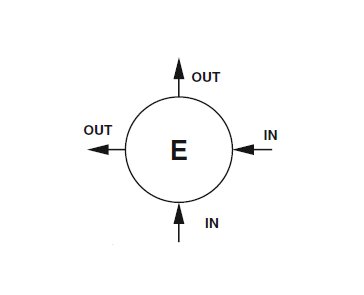

Specifications Port Configuration

E - See Diagram for Port Configuration

Specifications Process Port Size

1/4 in

Specifications Process Port Types

Female National Pipe Tapered (FNPT)

Specifications Weight

1.9 lb | 0.86 kg

Technical Data Operating Temperature

-40 to +500 ÂºF | -40 to +260 ÂºC

Technical Data Optional Various Orifice Sizes

0.005 | 0.01 | 0.025 | 0.03 | 0.04 | 0.05 | 0.06 | 0.095 | 0.12 | 0.24 | 0.3

Applications Applications

Analytical instrumentationGas and liquid samplingPetrochemical industryAir compressorsResearch labsPilot plants

GO Regulator BP-3 Stainless Steel Adjustable Back Pressure Regulator
