GO Regulator BP-3 Stainless Steel Back Pressure Regulator 1/4in
GO Regulator BP-3 Stainless Steel Back Pressure Regulator 1/4in
SKU:GOP-8f9b22
Reliable GO Regulator BP-3 Back Pressure Regulator for precise liquid and gas control in various industries.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
GO Regulator BP-3 Stainless Steel Back Pressure Regulator 1/4in
$179.99
Quantity: 1
Claim Your Seller Account
GO Regulator BP-3 Stainless Steel Back Pressure Regulator 1/4in
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator BP-3 Stainless Steel Adjustable Back Pressure Regulator is designed for precise control in both liquid and gas service applications. Featuring 316L stainless steel and Polytetrafluoroethylene (PTFE) in the flow stream, this regulator ensures bubble-tight shutoff and is suitable for gas or liquid service. With a control range of 0 to 25 psig, this regulator offers exceptional system pressure regulation, making it ideal for analytical instrumentation, gas and liquid sampling, petrochemical industry, air compressors, research labs, and pilot plants.
Product Specifications
Features And Benefits Features And Benefits
Only 316L stainless steel and Polytetrafluoroethylene (PTFE) in flow streamBubble tight shutoffGas or liquid service
Note Note
The choices above represent an abbreviated list of the more commonly ordered options.
Options Options
Wetted materials of construction brass, Monel®, Hastelloy® C-276, titaniumExtra portsPanel mount (requires a 1 3/8"mounting hole)High purity connectionsPressure gauges
Specifications Actuator Material
Fluorocarbon (FKM)
Specifications Body Material
316L Stainless Steel, Stainless Steel Backing
Specifications Cap Assembly
Tamper Proof
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 25 psig
Specifications Diaphragm Backing Material
Metal Backing
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.2
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)

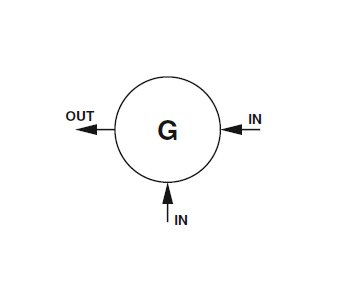

Specifications Port Configuration
G - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Weight
1.9 lb | 0.86 kg
Technical Data Operating Temperature
-40 to +500 ºF | -40 to +260 ºC
Technical Data Optional Various Orifice Sizes
0.005 | 0.01 | 0.025 | 0.03 | 0.04 | 0.05 | 0.06 | 0.095 | 0.12 | 0.24 | 0.3
Applications Applications
Analytical instrumentationGas and liquid samplingPetrochemical industryAir compressorsResearch labsPilot plants
