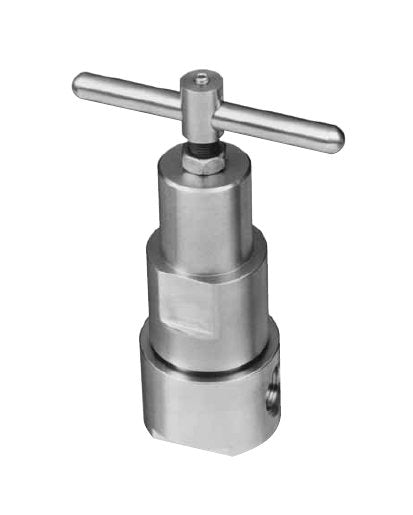

GO Regulator BP-6 High Flow Back Pressure Regulator
GO Regulator BP-6 High Flow Back Pressure Regulator
SKU:GOP-fb54de
Experience precise pressure control with the GO Regulator BP-6 High Flow Regulator for water purification & instrumentation systems.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
GO Regulator BP-6 High Flow Back Pressure Regulator
$349.99
Quantity: 1
Claim Your Seller Account
GO Regulator BP-6 High Flow Back Pressure Regulator
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator BP-6 High Flow Back Pressure Regulator is a robust solution designed for reverse osmosis water purification systems, pilot facilities, and large instrumentation systems. Constructed with 316L stainless steel actuator material, this regulator offers a wide control range of 0 to 1000 psig, making it suitable for various chemical environments. With features like a PTFE-lined stainless diaphragm and metal-to-metal seat, it ensures reliable performance in high-flow systems. Additional options like soft seat for bubble-tight shutoff and panel mounting enhance its versatility.
Product Specifications
Features And Benefits Features And Benefits
Gas or liquid serviceSensing with Polytetrafluoroethylene (PTFE) lined stainless diaphragmMetal to metal seat
Note Note
The choices above represent an abbreviated list of the more commonly ordered options.
Options Options
Soft seat for bubble tight shutoffPanel mountingExtra portsSpecial welded connectionsPressure gauges
Specifications Actuator Material
316L Stainless Steel
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
T-Handle, Panel Mount, Stainless Steel
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 1000 psig
Specifications Diaphragm Backing Material
Metal Backing
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.3
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)
Specifications Port Configuration

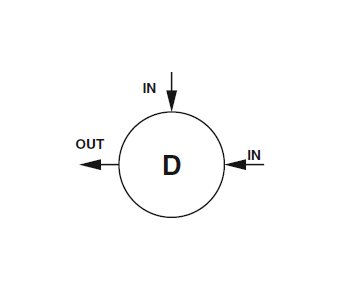

D - See Diagram for Port Configuration
Specifications Process Port Size
1/2 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Weight
4.3 lb | 1.95 kg
Technical Data Inlet And Outlet Connections
1/2 in. Female National Pipe Tapered (FNPT)
Technical Data Operating Temperature
-40 to +500 ºF | -40 to +260 ºC
Applications Applications
Pilot plantsLarge instrumentation systemsReverse osmosis water purification systems
