GO Regulator BP-6 High Flow Back Pressure Regulator - 0-100 psig Control Range
GO Regulator BP-6 High Flow Back Pressure Regulator - 0-100 psig Control Range
SKU:GOP-a06aa0
GO Regulator BP-6 - High Flow Back Pressure Regulator for precise control and reliability in varied applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
GO Regulator BP-6 High Flow Back Pressure Regulator - 0-100 psig Control Range
$349.99
Quantity: 1
Claim Your Seller Account
GO Regulator BP-6 High Flow Back Pressure Regulator - 0-100 psig Control Range
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

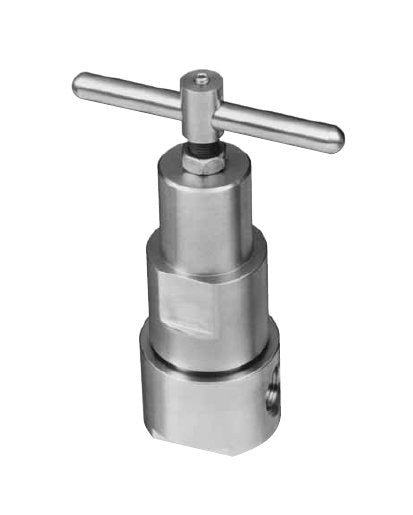

The GO Regulator BP-6 High Flow Back Pressure Regulator is expertly designed for reverse osmosis water purification systems, pilot plants, and large instrumentation systems. Constructed with 316L Stainless Steel and a Polytetrafluoroethylene (PTFE) Actuator, it offers reliable performance in various chemical environments. This regulator features a Cv of 0.3, a metal-to-metal seat, and options for bubble-tight shutoff and pressure gauges. Ideal for gas or liquid service, the BP-6 Series ensures precise control with PTFE-lined stainless diaphragms and metal backing.
Product Specifications
Features And Benefits Features And Benefits
Gas or liquid serviceSensing with Polytetrafluoroethylene (PTFE) lined stainless diaphragmMetal to metal seat
Note Note
The choices above represent an abbreviated list of the more commonly ordered options.
Options Options
Soft seat for bubble tight shutoffPanel mountingExtra portsSpecial welded connectionsPressure gauges
Specifications Actuator Material
Polytetrafluoroethylene (PTFE)
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
T-Handle, Stainless Steel
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 100 psig
Specifications Diaphragm Backing Material
Metal Backing
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.3
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)
Specifications Port Configuration
Standard
Specifications Process Port Size
1/2 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)

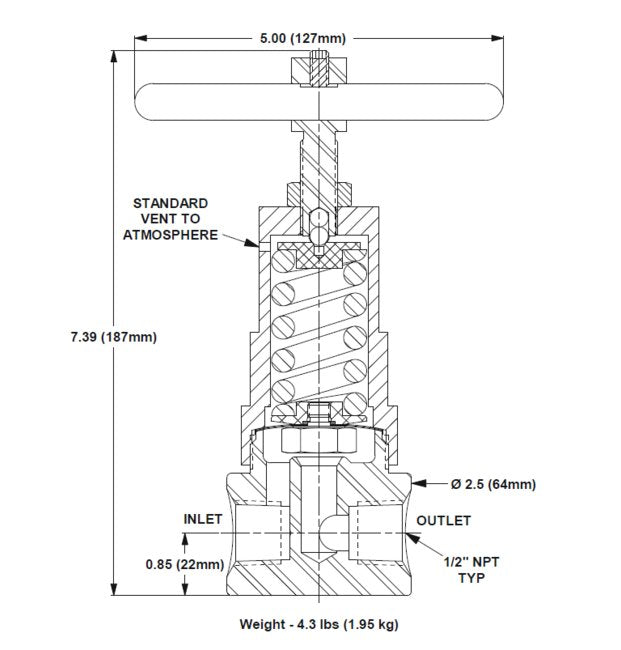

Specifications Weight
4.3 lb | 1.95 kg
Technical Data Inlet And Outlet Connections
1/2 in. Female National Pipe Tapered (FNPT)
Technical Data Operating Temperature
-40 to +500 ºF | -40 to +260 ºC
Applications Applications
Pilot plantsLarge instrumentation systemsReverse osmosis water purification systems
