GO Regulator BP-60 Series: High-pressure, low-flow regulator for precise control and bubble-tight shutoff in research and pilot plant facilities.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
GO Regulator BP-60 High Pressure Low Flow Back Pressure Regulator
$299.99
Quantity: 1
Claim Your Seller Account
GO Regulator BP-60 High Pressure Low Flow Back Pressure Regulator
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

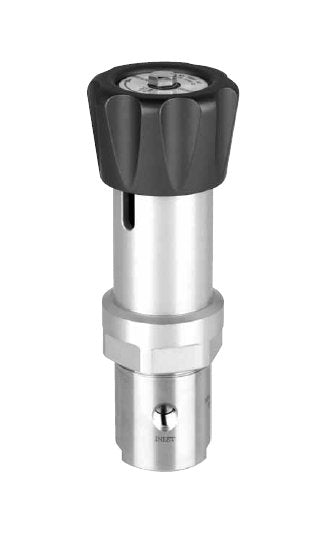

The GO Regulator BP-60 Series is a high-pressure, low-flow back pressure regulator designed for systems requiring relief at elevated pressures. Constructed with 316L stainless steel body and PTFE stainless seat assembly, it ensures optimal shutoff in various applications. With a flow coefficient of 0.04 and a control range of 1 to 1000 psig, this regulator offers precise control and reliable performance. Ideal for research labs, pilot plants, and sampling systems, it features diaphragm sensing for bubble-tight shutoff and is suitable for moderate flow applications.
Product Specifications
Features And Benefits Features And Benefits
Designed for moderate flow applicationsDiaphragm sensing with nylon, PTFE or stainless steel diaphragmBubble tight shutoff
Note Note
The choices above represent an abbreviated list of the more commonly ordered options.
Options Options
Various Cv's available - 0.005, 0.01, 0.025, 0.09Panel mounting3/8" FNPT, AN 10050-4, SAE J514 or MS 33649 connections
Specifications Actuator Material
Polytetrafluoroethylene (PTFE)
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, Aluminum
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
1 to 1000 psig
Specifications Diaphragm Actuator Material
Stainless Steel
Specifications Diaphragm Backing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Facing Material
Stainless Steel
Specifications Diaphragm O Ring Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.04
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)
Specifications Port Configuration

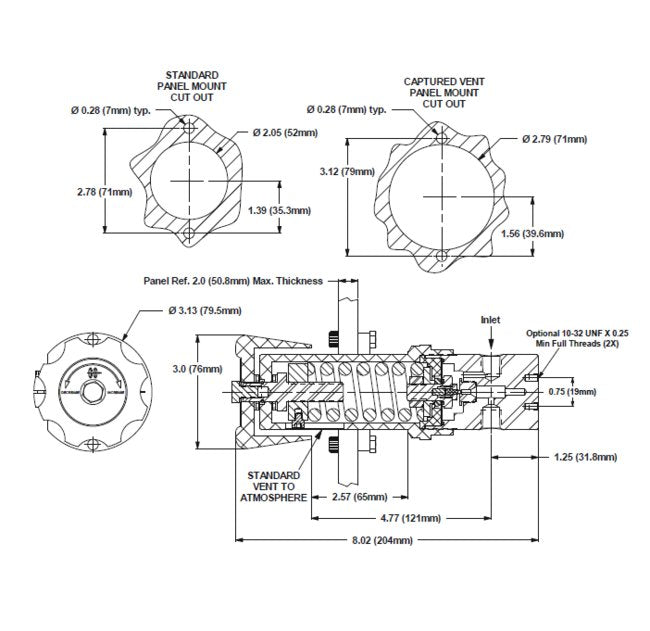

D - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Weight
4.4 lb | 2.0 kg
Technical Data Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT)
Technical Data Operating Temperature
-40 to +350 ºF | -40 to +175 ºC
Applications Applications
Sampling SystemsPilot plantsResearch labs
