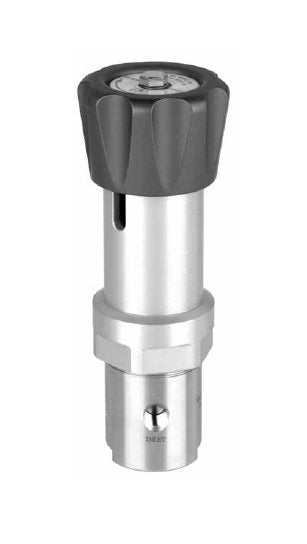

The GO Regulator BP-66 High Back Pressure Regulator is designed for systems with high pressure and low to moderate flows. Featuring a sturdy 316L stainless steel body and a Polyimide actuator, it offers precise control with a wide 0 to 6000 psig range. This regulator boasts a spring-loaded piston sensor, Fluorocarbon seals, and aluminum cap assembly for reliable performance in research and pilot plant facilities.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Benefits Features And Benefits
Spring-loaded piston sensorGas and liquid serviceFluorocarbon (FKM) seals (other elastomers optional)
Note Note
The choices above represent an abbreviated list of the more commonly ordered options.
Options Options
Panel mountingMonel® and titanium body constructionCv of 0.01 or 0.12AN 10050-4, SAE J514, MS 33649 or 3/8" FNPT connections
Specifications Actuator Material
Polyimide
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Panel Mount, Aluminum
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 6000 psig
Specifications Flow Coefficient Cv
I
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)
Specifications Piston Material
Stainless Steel with Standard Fluorocarbon (FKM) Cavity O-Ring
Specifications Piston Type
Standard

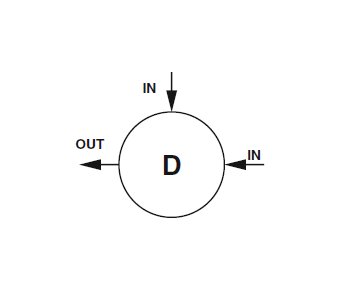

Specifications Port Configuration
D - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Weight
4.4 lb | 2.0 kg
Technical Data Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT) (Standard) Aerospace Standard (AS) 10050-4, Society of Automotive Engineers (SAE) J514, Military Standard (MS) 33649, or 3/8" Female National Pipe Tapered (FNPT) (Optional)
Technical Data Operating Temperature
-40 to +350 ºF | -40 to +177 ºC
Applications Applications
Pilot plantsResearch labs
