GO Regulator BP-66 High Back Pressure Regulator 6000 psig Control Range
GO Regulator BP-66 High Back Pressure Regulator 6000 psig Control Range
SKU:GOP-cfd476
Premium BP-66 High Back Pressure Regulator with superior sensitivity and control range for precision applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
GO Regulator BP-66 High Back Pressure Regulator 6000 psig Control Range
$299.99
Quantity: 1
Claim Your Seller Account
GO Regulator BP-66 High Back Pressure Regulator 6000 psig Control Range
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

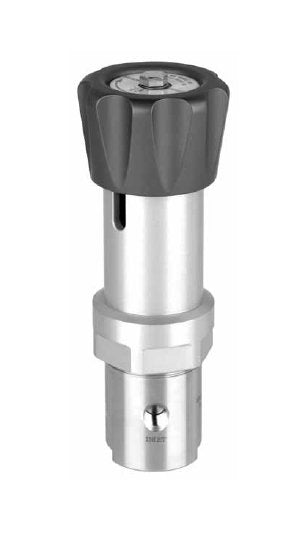

The GO Regulator BP-66 High Back Pressure Regulator is designed for systems with high pressure and low to moderate flows. Featuring piston sensing for relief at high pressures, a Polyimide/stainless seat assembly for optimal shutoff, and aluminum cap assembly for economy. With excellent sensitivity and a range of control options, this regulator is ideal for research and pilot plant facilities.
Product Specifications
Features And Benefits Features And Benefits
Spring-loaded piston sensorGas and liquid serviceFluorocarbon (FKM) seals (other elastomers optional)
Note Note
The choices above represent an abbreviated list of the more commonly ordered options.
Options Options

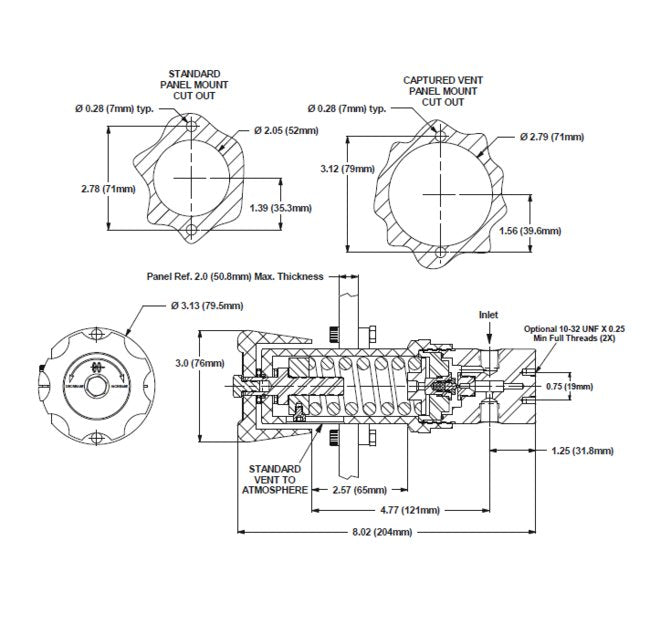

Panel mountingMonel® and titanium body constructionCv of 0.01 or 0.12AN 10050-4, SAE J514, MS 33649 or 3/8" FNPT connections
Specifications Actuator Material
Polyimide
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, Aluminum
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 6000 psig
Specifications Flow Coefficient Cv
0.04
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)
Specifications Piston Material
Stainless Steel with optional Polytetrafluoroethylene (PTFE) Cavity O-Ring
Specifications Piston Type
Standard

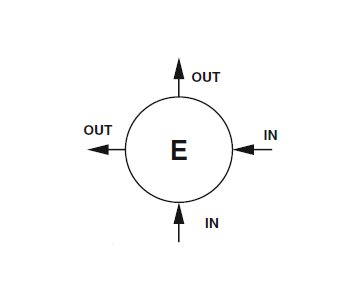

Specifications Port Configuration
E - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Weight
4.4 lb | 2.0 kg
Technical Data Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT) (Standard) Aerospace Standard (AS) 10050-4, Society of Automotive Engineers (SAE) J514, Military Standard (MS) 33649, or 3/8" Female National Pipe Tapered (FNPT) (Optional)
Technical Data Operating Temperature
-40 to +350 ºF | -40 to +177 ºC
Applications Applications
Pilot plantsResearch labs
