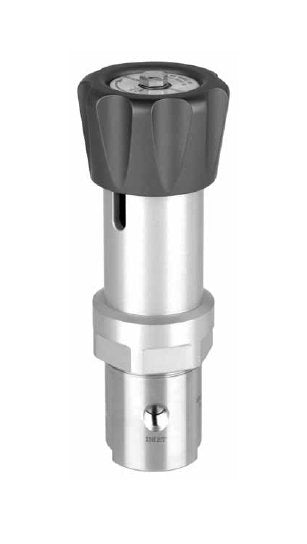

GO Regulator BP-66 High Back Pressure Regulator with 0-4000 psig Control Range
GO Regulator BP-66 High Back Pressure Regulator with 0-4000 psig Control Range
SKU:GOP-0e7904
Experience precise pressure control with the GO Regulator BP-66 High Back Pressure Regulator, designed for high-pressure systems. Polyetheretherketone (PEEK) actuator material ensures reliability.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
GO Regulator BP-66 High Back Pressure Regulator with 0-4000 psig Control Range
$349.99
Quantity: 1
Claim Your Seller Account
GO Regulator BP-66 High Back Pressure Regulator with 0-4000 psig Control Range
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator BP-66 High Back Pressure Regulator is designed for systems with higher pressure and moderate flows. Featuring piston sensing for relief at high pressures, this regulator ensures precise control with its Polyetheretherketone (PEEK) actuator material. The stainless steel seat assembly offers excellent shutoff performance, making it ideal for research labs and pilot plant facilities. With a robust construction and a wide control range, this regulator delivers exceptional sensitivity and reliability.
Product Specifications
Features And Benefits Features And Benefits
Spring-loaded piston sensorGas and liquid serviceFluorocarbon (FKM) seals (other elastomers optional)
Note Note
The choices above represent an abbreviated list of the more commonly ordered options.
Options Options
Panel mountingMonel® and titanium body constructionCv of 0.01 or 0.12AN 10050-4, SAE J514, MS 33649 or 3/8" FNPT connections
Specifications Actuator Material
Polyetheretherketone (PEEKâ¢)
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, Aluminum
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 4000 psig
Specifications Flow Coefficient Cv
0.04
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)
Specifications Piston Material
Stainless Steel with Standard Fluorocarbon (FKM) Cavity O-Ring
Specifications Piston Type
Standard
Specifications Port Configuration

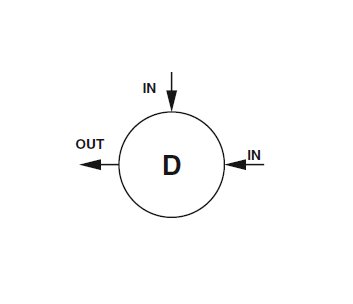

D - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Weight
4.4 lb | 2.0 kg
Technical Data Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT) (Standard) Aerospace Standard (AS) 10050-4, Society of Automotive Engineers (SAE) J514, Military Standard (MS) 33649, or 3/8" Female National Pipe Tapered (FNPT) (Optional)
Technical Data Operating Temperature
-40 to +350 ºF | -40 to +177 ºC
Applications Applications
Pilot plantsResearch labs
