GO Regulator BP-66 High Back Pressure Regulator with 0-4000 psig Control Range and PEEK Actuator

GO Regulator BP-66 High Back Pressure Regulator with 0-4000 psig Control Range and PEEK Actuator

GOP-b2cbe0

GO Regulator BP-66 High Back Pressure Regulator for precise pressure control in high-pressure systems. Features PEEK Actuator, spring-loaded piston sensor & fluorocarbon seals.

$499.99
$499.99
Sale

Initiate Order

GO Regulator BP-66 High Back Pressure Regulator with 0-4000 psig Control Range and PEEK Actuator

GO Regulator BP-66 High Back Pressure Regulator with 0-4000 psig Control Range and PEEK Actuator

$499.99

Quantity: 1

Claim Your Seller Account

GO Regulator BP-66 High Back Pressure Regulator with 0-4000 psig Control Range and PEEK Actuator

GO Regulator BP-66 High Back Pressure Regulator with 0-4000 psig Control Range and PEEK Actuator

$499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience precise pressure control with the GO Regulator BP-66 High Back Pressure Regulator. Constructed with 316L Stainless Steel body and a Polyetheretherketone (PEEK) Actuator, this regulator ensures reliable performance in high-pressure systems. It features a spring-loaded piston sensor for accurate monitoring, fluorocarbon seals for enhanced durability, and a standard aluminum cap assembly. Ideal for pilot plants and research labs, this regulator offers a control range of 0 to 4000 psig, making it a versatile and efficient choice for various applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features And Benefits Features And Benefits
Spring-loaded piston sensorGas and liquid serviceFluorocarbon (FKM) seals (other elastomers optional)
Note Note
The choices above represent an abbreviated list of the more commonly ordered options.
Options Options
Panel mountingMonel® and titanium body constructionCv of 0.01 or 0.12AN 10050-4, SAE J514, MS 33649 or 3/8" FNPT connections
Specifications Actuator Material
Polyetheretherketone (PEEK™)
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, Aluminum
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 4000 psig
Specifications Flow Coefficient Cv
0.04
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)
Specifications Piston Material
Stainless Steel with optional Polytetrafluoroethylene (PTFE) Cavity O-Ring
Specifications Piston Type
Standard
Specifications Port Configuration

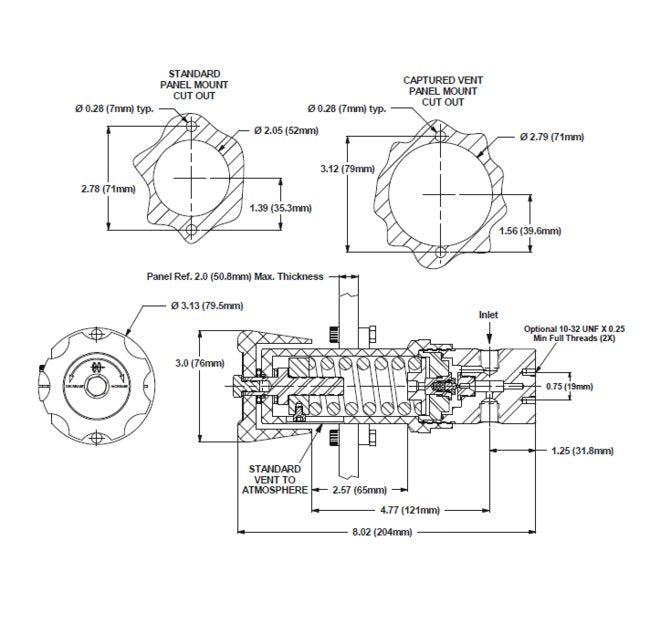

E - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Weight
4.4 lb | 2.0 kg
Technical Data Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT) (Standard) Aerospace Standard (AS) 10050-4, Society of Automotive Engineers (SAE) J514, Military Standard (MS) 33649, or 3/8" Female National Pipe Tapered (FNPT) (Optional)
Technical Data Operating Temperature
-40 to +350 ºF | -40 to +177 ºC
Applications Applications
Pilot plantsResearch labs
