GO Regulator BP-66 High Back Pressure Regulator with 0-6000 psig Control Range & PEEK Actuator
GO Regulator BP-66 High Back Pressure Regulator with 0-6000 psig Control Range & PEEK Actuator
SKU:GOP-7bbcbe
GO Regulator BP-66 High Back Pressure Regulator: Designed for high-pressure systems, offers precise control & durability for reliable relief.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
GO Regulator BP-66 High Back Pressure Regulator with 0-6000 psig Control Range & PEEK Actuator
$499.99
Quantity: 1
Claim Your Seller Account
GO Regulator BP-66 High Back Pressure Regulator with 0-6000 psig Control Range & PEEK Actuator
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

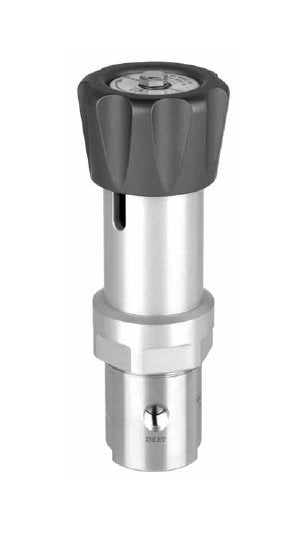

The GO Regulator BP-66 High Back Pressure Regulator is designed for high-pressure systems with low to moderate flows. Featuring a robust 316L Stainless Steel body and a piston sensing mechanism, this regulator ensures reliable relief at high pressures. The Polyetheretherketone (PEEK™) actuator material enhances durability, making it ideal for research labs and pilot plants. With precise control ranges, spring-loaded piston sensor, and versatile connection options, this regulator offers exceptional sensitivity and performance in gas and liquid service applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features And Benefits Features And Benefits
Spring-loaded piston sensorGas and liquid serviceFluorocarbon (FKM) seals (other elastomers optional)
Note Note
The choices above represent an abbreviated list of the more commonly ordered options.
Options Options
Panel mountingMonel® and titanium body constructionCv of 0.01 or 0.12AN 10050-4, SAE J514, MS 33649 or 3/8" FNPT connections
Specifications Actuator Material
Polyetheretherketone (PEEKâ¢)
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, Aluminum
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 6000 psig
Specifications Flow Coefficient Cv
0.04
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)
Specifications Piston Material
Stainless Steel with optional Polytetrafluoroethylene (PTFE) Cavity O-Ring
Specifications Piston Type
Standard

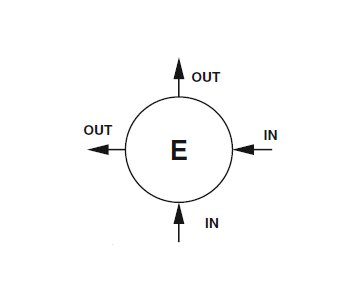

Specifications Port Configuration
E - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Weight
4.4 lb | 2.0 kg
Technical Data Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT) (Standard) Aerospace Standard (AS) 10050-4, Society of Automotive Engineers (SAE) J514, Military Standard (MS) 33649, or 3/8" Female National Pipe Tapered (FNPT) (Optional)
Technical Data Operating Temperature
-40 to +350 ºF | -40 to +177 ºC
Applications Applications
Pilot plantsResearch labs
