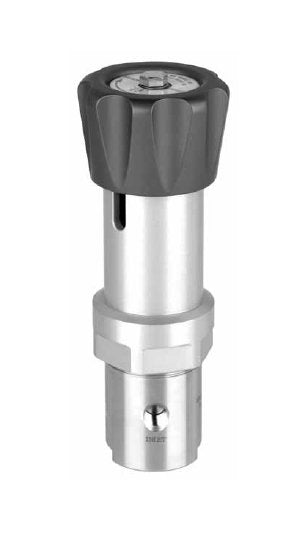

GO Regulator BP-66 High Back Pressure Regulator with PEEK Actuator
GO Regulator BP-66 High Back Pressure Regulator with PEEK Actuator
SKU:GOP-83a442
High precision BP-66 High Back Pressure Regulator designed for high-pressure systems with piston sensing and Polyimide/stainless seat assembly.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
GO Regulator BP-66 High Back Pressure Regulator with PEEK Actuator
$499.99
Quantity: 1
Claim Your Seller Account
GO Regulator BP-66 High Back Pressure Regulator with PEEK Actuator
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator BP-66 High Back Pressure Regulator, designed as the ideal counterpart to the PR-57 series, is engineered for systems with higher pressures and low to moderate flows. Featuring a piston sensing mechanism for high-pressure relief, this regulator boasts a Polyimide/stainless seat assembly ensuring excellent shutoff in diverse applications. With an aluminum cap assembly and knob for economic efficiency, the regulator offers exceptional sensitivity, a range of control options, and is a prime choice for research and pilot plant facilities.
Product Specifications
Features And Benefits Features And Benefits
Spring-loaded piston sensorGas and liquid serviceFluorocarbon (FKM) seals (other elastomers optional)
Note Note
The choices above represent an abbreviated list of the more commonly ordered options.
Options Options
Panel mountingMonel® and titanium body constructionCv of 0.01 or 0.12AN 10050-4, SAE J514, MS 33649 or 3/8" FNPT connections
Specifications Actuator Material
Polyetheretherketone (PEEKâ¢)
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, Aluminum
Specifications Cavity Finish
25 Ra with 10-32 Mounting Holes
Specifications Control Range
0 to 2000 psig
Specifications Flow Coefficient Cv
0.04
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)
Specifications Piston Material
Stainless Steel with Standard Fluorocarbon (FKM) Cavity O-Ring
Specifications Piston Type
Standard
Specifications Port Configuration
Standard
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Weight
4.4 lb | 2.0 kg
Technical Data Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT) (Standard) Aerospace Standard (AS) 10050-4, Society of Automotive Engineers (SAE) J514, Military Standard (MS) 33649, or 3/8" Female National Pipe Tapered (FNPT) (Optional)
Technical Data Operating Temperature
-40 to +350 ºF | -40 to +177 ºC
Applications Applications
Pilot plantsResearch labs
