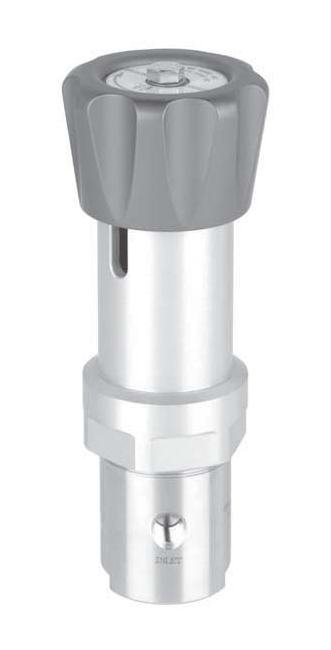

GO Regulator BP-66 Series Back Pressure Regulators
GO Regulator BP-66 Series Back Pressure Regulators
SKU:GOR-8b322c
Discover precision control with GO Regulator BP-66 Series Back Pressure Regulators, engineered for high-pressure systems
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
GO Regulator BP-66 Series Back Pressure Regulators
$299.99
Quantity: 1
Claim Your Seller Account
GO Regulator BP-66 Series Back Pressure Regulators
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator BP-66 Series Back Pressure Regulators are designed as high-pressure counterparts to the PR-57 series, offering reliable relief in gas and liquid services. Constructed with premium materials like 316L Stainless Steel and PEEK®, these regulators ensure durability and efficient control. With a maximum operating pressure of 10000 psig and precise control ranges up to 6000 psig, they are ideal for pilot plants and research labs. The compliance with industry standards makes them a dependable choice for institutional buyers.
Product Specifications
Applications 0
Typical ApplicationsPilot plantsResearch labsM
Options 0
Panel mountingMonel® and titanium body constructionCv of 0.01 or 0.12AN 10050-4, SAE J514, MS 33649 or 3/8" FNPT connections
Specifications Actuator Material
PEEKâ¢
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, aluminum
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 6000 psig
Specifications Flow Coefficient Cv
0.04
Specifications Max Operating Pressure
10000 psig
Specifications Operating Temperature
-40 to 177 ºC | -40 to 350 ºF
Specifications Piston Material
Stainless steel with standard Viton® cavity o-ring
Specifications Piston Type
Standard
Specifications Port Configuration
Standard (body "A")
Specifications Process Port Type
1/4" FNPT
Specifications Seat Material
PEEK®
Specifications Series
BP-66
