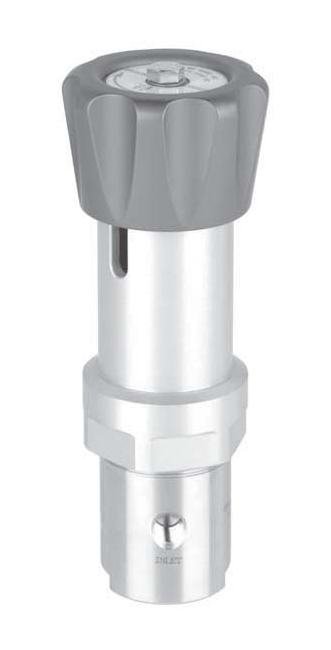

GO Regulator BP-66 Series Back Pressure Regulators

GO Regulator BP-66 Series Back Pressure Regulators

GOR-fa4c20

Discover precise pressure control with the GO Regulator BP-66 Series Back Pressure Regulators. Designed for higher pressure systems with optimal sensitivity and a versatile control range.

$299.99
$299.99
Sale

Initiate Order

GO Regulator BP-66 Series Back Pressure Regulators

GO Regulator BP-66 Series Back Pressure Regulators

$299.99

Quantity: 1

Claim Your Seller Account

GO Regulator BP-66 Series Back Pressure Regulators

GO Regulator BP-66 Series Back Pressure Regulators

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The GO Regulator BP-66 Series Back Pressure Regulators are engineered for systems with elevated pressure and low to moderate flows. Featuring a piston sensing mechanism, this regulator offers reliable relief at high pressures. Constructed with a Polyimide/stainless seat assembly, it ensures excellent shutoff in various applications. The aluminum cap assembly and knob enhance its cost-efficiency, aligning with the PR-57 companion unit. With superior sensitivity and a versatile range of control options, the BP-66 Series is the ideal choice for research and pilot plant facilities looking for precise pressure control.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications 0
Typical ApplicationsPilot plantsResearch labsM
Options 0
Panel mountingMonel® and titanium body constructionCv of 0.01 or 0.12AN 10050-4, SAE J514, MS 33649 or 3/8" FNPT connections
Specifications Actuator Material
PEEK™
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Panel mount, aluminum
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 7500 psig
Specifications Flow Coefficient Cv
0.01
Specifications Max Operating Pressure
10000 psig
Specifications Operating Temperature
-40 to 177 ºC | -40 to 350 ºF
Specifications Piston Material
Stainless steel with standard Viton® cavity o-ring
Specifications Piston Type
Standard
Specifications Port Configuration
Standard (body "A")
Specifications Process Port Type
1/4" FNPT
Specifications Seat Material
PEEK®
Specifications Series
BP-66
