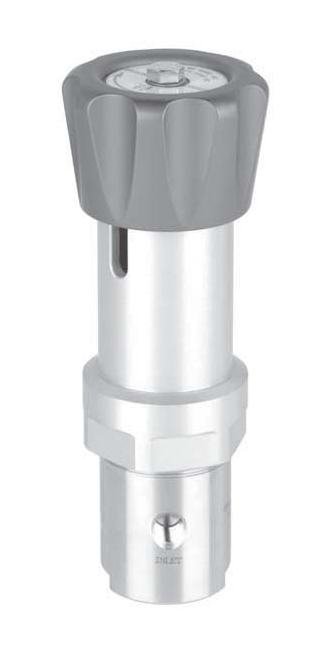

The GO Regulator BP-66 Series Back Pressure Regulators are designed as high-pressure counterparts to the PR-57 series, offering reliable relief for high-pressure systems with low to moderate flows. Constructed with 316L stainless steel body and PEEK seat material, these regulators ensure excellent shutoff in various applications. Featuring a spring-loaded piston sensor, a control range of 0 to 2000 psig, and versatile port configurations, the BP-66 Series is ideal for pilot plants, research labs, and other industrial facilities seeking precision and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Typical ApplicationsPilot plantsResearch labsM
Options 0
Panel mountingMonel® and titanium body constructionCv of 0.01 or 0.12AN 10050-4, SAE J514, MS 33649 or 3/8" FNPT connections
Specifications Actuator Material
PEEKâ¢
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, aluminum
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 2000 psig
Specifications Flow Coefficient Cv
0.01
Specifications Max Operating Pressure
10000 psig
Specifications Operating Temperature
-40 to 177 ºC | -40 to 350 ºF
Specifications Piston Material
Stainless steel with optional Teflon® cavity o-ring
Specifications Piston Type
Standard
Specifications Port Configuration
Standard (body "A")
Specifications Process Port Type
1/4" FNPT
Specifications Seat Material
PEEK®
Specifications Series
BP-66
