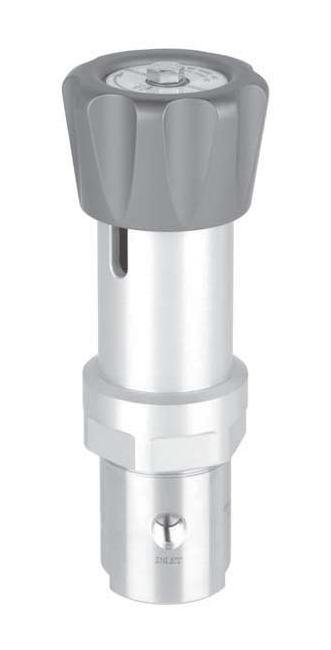

GO Regulator BP-66 Series Back Pressure Regulators
GO Regulator BP-66 Series Back Pressure Regulators
SKU:GOR-96f5a0
GO Regulator BP-66 Series Back Pressure Regulators offer precise pressure control and reliable shutoff for high-pressure systems. Ideal for research labs and pilot plants.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
GO Regulator BP-66 Series Back Pressure Regulators
$499.99
Quantity: 1
Claim Your Seller Account
GO Regulator BP-66 Series Back Pressure Regulators
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator BP-66 Series Back Pressure Regulators are designed as a high-pressure solution for systems with moderate flows, featuring a piston sensor for pressure relief. With a Polyimide/stainless seat assembly ensuring reliable shutoff, this regulator offers exceptional sensitivity and a wide control range from 0 to 7500 psig. Ideal for research and pilot plants, it comes with Viton® seals and options for Monel® and titanium body construction. The compliance with industry standards makes it a superior choice for procurement in government and institutional settings.
Product Specifications
Applications 0
Typical ApplicationsPilot plantsResearch labsM
Options 0
Panel mountingMonel® and titanium body constructionCv of 0.01 or 0.12AN 10050-4, SAE J514, MS 33649 or 3/8" FNPT connections
Specifications Actuator Material
PEEKâ¢
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Panel mount, aluminum
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 7500 psig
Specifications Flow Coefficient Cv
0.01
Specifications Max Operating Pressure
10000 psig
Specifications Operating Temperature
-40 to 177 ºC | -40 to 350 ºF
Specifications Piston Material
Titanium
Specifications Piston Type
Standard
Specifications Port Configuration
Standard (body "A")
Specifications Process Port Type
1/4" FNPT
Specifications Seat Material
PEEK®
Specifications Series
BP-66
