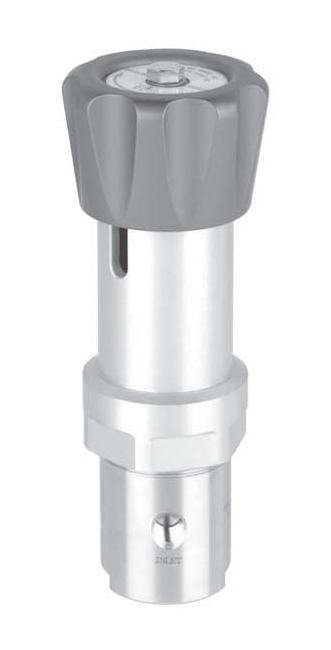

GO Regulator BP-66 Series Back Pressure Regulators
GO Regulator BP-66 Series Back Pressure Regulators
SKU:GOR-5ef72a
GO Regulator BP-66 Series Back Pressure Regulators. Reliable relief at high pressures. Ideal for pilot plants and research labs.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
GO Regulator BP-66 Series Back Pressure Regulators
$299.99
Quantity: 1
Claim Your Seller Account
GO Regulator BP-66 Series Back Pressure Regulators
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator BP-66 Series Back Pressure Regulators are designed as the ideal counterpart to the PR-57 pressure reducing series, catering to systems with higher pressure and low to moderate flows. Featuring a spring-loaded piston sensor and a Polyimide/stainless seat assembly, these regulators offer reliable relief at high pressures and excellent shutoff in various applications. With a durable construction including 316L Stainless Steel body and PEEK® seat material, these regulators ensure reliable performance. Suitable for gas and liquid service, with a control range of 0 to 10000 psig, these regulators are perfect for pilot plants, research labs, and other industrial facilities.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Typical ApplicationsPilot plantsResearch labsM
Options 0
Panel mountingMonel® and titanium body constructionCv of 0.01 or 0.12AN 10050-4, SAE J514, MS 33649 or 3/8" FNPT connections
Specifications Actuator Material
PEEKâ¢
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, aluminum
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 10000 psig
Specifications Flow Coefficient Cv
0.12
Specifications Max Operating Pressure
10000 psig
Specifications Operating Temperature
-40 to 177 ºC | -40 to 350 ºF
Specifications Piston Material
Monel®
Specifications Piston Type
Standard
Specifications Port Configuration
Standard (body "A")
Specifications Process Port Type
1/4" FNPT
Specifications Seat Material
PEEK®
Specifications Series
BP-66
