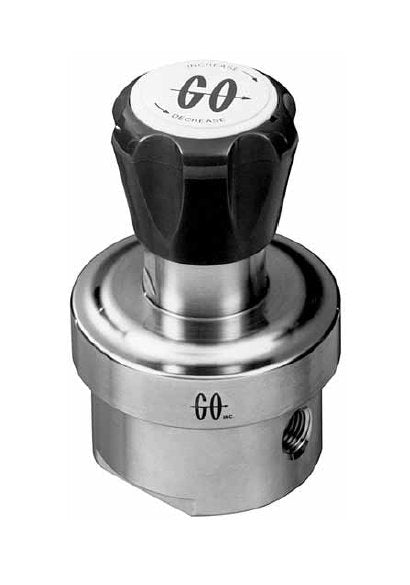

The GO Regulator BP-8 is a precision instrument designed for controlling back pressure in low to moderate pressure ranges with high flow rates. Ideal for instrumentation systems, pilot plants, and research activities, this regulator features a glass-filled Polytetrafluoroethylene (PTFE) actuator for precise pressure control. The stainless steel body ensures compatibility with most chemical environments, while the PTFE-faced diaphragm assembly offers tight shut off even at lower flows. With a control range of 0 to 250 psig, the BP-8 is a reliable solution for applications requiring pressure control of large flows.
Product Specifications
Features And Benefits Features And Benefits
Pressure control of large flowsStandard Stainless Steel Diaphragm, PTFE Faced
Note Note
The choices above represent an abbreviated list of the more commonly ordered options. For a complete listing of all available options.
Options Options
Panel mountingExtra ports3/8" FNPT, 1/2" FNPT, 1/4" tube weld, 1/4" pipe weld, 1/2" tube weld
Specifications Actuator Material
Glass Filled Polytetrafluoroethylene (PTFE)
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 250 psig
Specifications Diaphragm Backing Material
Metal Backing
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
1.2
Specifications Gauge Port Size
J in
Specifications Gauge Port Types
J
Specifications Port Configuration
Standard
Specifications Process Port Size
J in
Specifications Process Port Types
J
Specifications Weight
3.2 lb | 1.45 kg
Technical Data Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT)
Technical Data Operating Temperature
-40 to +250 ºF | -40 to +121 ºC
Applications Applications
Instrumentation systemsPilot plantsAir compressors
