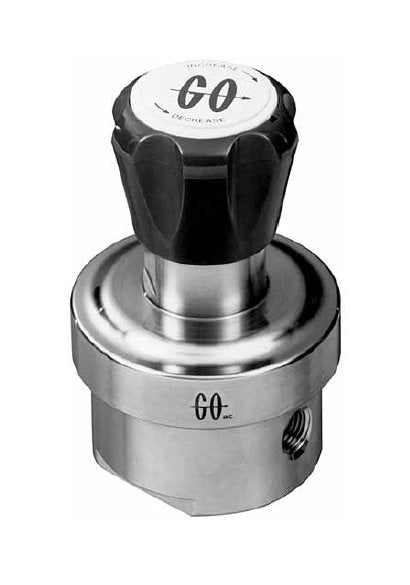

GO Regulator BP-8 High Flow Low Back Pressure Regulator
GO Regulator BP-8 High Flow Low Back Pressure Regulator
SKU:GOP-102c02
Precisely control back pressure with the GO Regulator BP-8 High Flow Regulator, featuring 0-50 psig range & PTFE-diaphragm for tight shut off in instrumentation systems.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
GO Regulator BP-8 High Flow Low Back Pressure Regulator
$349.99
Quantity: 1
Claim Your Seller Account
GO Regulator BP-8 High Flow Low Back Pressure Regulator
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator BP-8 High Flow Low Back Pressure Regulator is meticulously designed for precise back pressure control in instrumentation systems, pilot plants, and air compressors. With a control range of 0 to 50 psig and an actuator material made of glass-filled Polytetrafluoroethylene (PTFE), this regulator offers exceptional performance and durability. Its stainless steel body assembly ensures compatibility with various chemical environments, while the PTFE-faced diaphragm provides tight shut off even at lower flows. Additional options like panel mounting and extra ports make it versatile for diverse applications.
Product Specifications
Features And Benefits Features And Benefits
Pressure control of large flowsStandard Stainless Steel Diaphragm, PTFE Faced
Note Note
The choices above represent an abbreviated list of the more commonly ordered options. For a complete listing of all available options.
Options Options
Panel mountingExtra ports3/8" FNPT, 1/2" FNPT, 1/4" tube weld, 1/4" pipe weld, 1/2" tube weld
Specifications Actuator Material
Glass Filled Polytetrafluoroethylene (PTFE)
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 50 psig
Specifications Diaphragm Backing Material
Metal Backing
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
1.2
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)
Specifications Port Configuration
Standard
Specifications Process Port Size
1/2 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Weight
3.2 lb | 1.45 kg
Technical Data Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT)
Technical Data Operating Temperature
-40 to +250 ºF | -40 to +121 ºC
Applications Applications
Instrumentation systemsPilot plantsAir compressors
