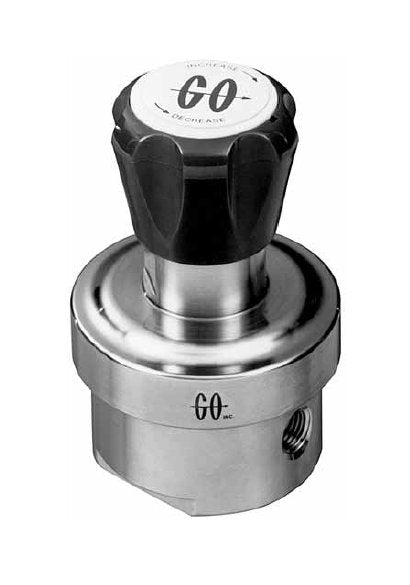

GO Regulator BP-8 High Flow Low Back Pressure Regulator
GO Regulator BP-8 High Flow Low Back Pressure Regulator
SKU:GOP-037ee5
GO Regulator BP-8: High flow, low back pressure regulator with 0-25 psig control range and glass-filled PTFE actuator material. Ideal for instrumentation systems & pilot plants.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
GO Regulator BP-8 High Flow Low Back Pressure Regulator
$259.99
Quantity: 1
Claim Your Seller Account
GO Regulator BP-8 High Flow Low Back Pressure Regulator
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator BP-8 High Flow Low Back Pressure Regulator is expertly engineered to efficiently control back pressure in instrumentation systems, pilot plants, and research settings. With a control range of 0 to 25 psig and a glass filled PTFE actuator material, this regulator ensures tight shut off even at lower flows. Its 316L stainless steel body assembly suits various chemical environments, while optional brass models are available. This regulator, weighing 3.2 lb, boasts standard features like a stainless steel diaphragm, PTFE facing, and a Cv of 1.2, making it an ideal choice for applications requiring precision pressure control.
Product Specifications
Features And Benefits Features And Benefits
Pressure control of large flowsStandard Stainless Steel Diaphragm, PTFE Faced
Note Note
The choices above represent an abbreviated list of the more commonly ordered options. For a complete listing of all available options.
Options Options
Panel mountingExtra ports3/8" FNPT, 1/2" FNPT, 1/4" tube weld, 1/4" pipe weld, 1/2" tube weld
Specifications Actuator Material
Glass Filled Polytetrafluoroethylene (PTFE)
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 25 psig
Specifications Diaphragm Backing Material
Metal Backing
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
1.2
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)
Specifications Port Configuration
Standard
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)

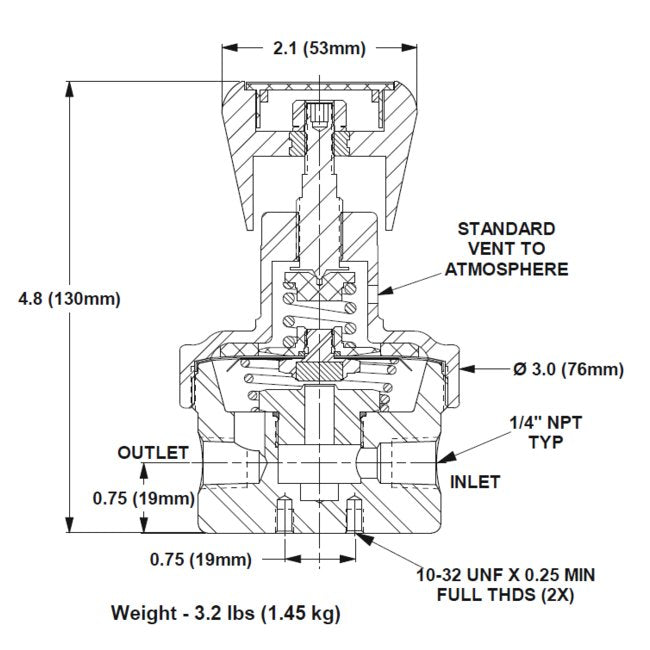

Specifications Weight
3.2 lb | 1.45 kg
Technical Data Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT)
Technical Data Operating Temperature
-40 to +250 ºF | -40 to +121 ºC
Applications Applications
Instrumentation systemsPilot plantsAir compressors
