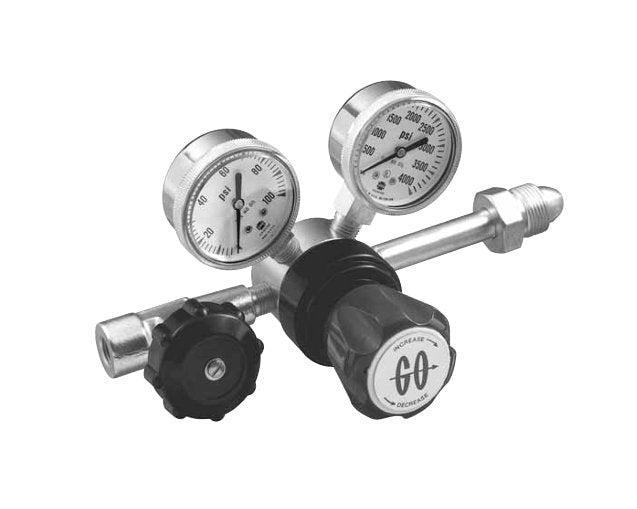

GO Regulator CYL-1 Brass Cylinder Regulator
GO Regulator CYL-1 Brass Cylinder Regulator
SKU:GOP-01a792
The GO Regulator CYL-1 Brass Regulator ensures precise pressure control for non-corrosive gases, featuring a 0.2 Cv, Tefzel seat, and stainless steel cap assembly.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
GO Regulator CYL-1 Brass Cylinder Regulator
$289.99
Quantity: 1
Claim Your Seller Account
GO Regulator CYL-1 Brass Cylinder Regulator
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The GO Regulator CYL-1 Brass Cylinder Regulator from GO Regulator, Inc. offers precise pressure control with a Flow Coefficient (Cv) of 0.2. This single-stage regulator features Tefzel® seat material, a standard stainless steel cap assembly, and 1/4 in. FNPT process and gauge ports. With an outlet range of 0 to 250 psig, -40 to +175 °F operating temperature, and maximum inlet pressure of 3600 psig, this regulator is ideal for non-corrosive gas applications. It includes integral inlet filtration, 2" diameter brass gauges, and a PTFE-lined stainless steel diaphragm for reliable performance. Contact the factory for custom requirements.
Product Specifications
Features And Specifications Features And Specifications
CGA inlet fittingIntegral inlet filter2" diameter brass gaugesPTFE-lined stainless steel diaphragmFluid media; non-corrosive gases
Note Note
Contact the factory for any additional requirements.
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.2
Specifications Gauges
Include Gauges
Specifications Gauge Port Types
1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports
Specifications Maximum Inlet Pressure
3600 psig
Specifications Operating Temperature
-40 to +175 ºF | -40 to +80 ºC
Specifications Outlet Range
0 to 250 psig

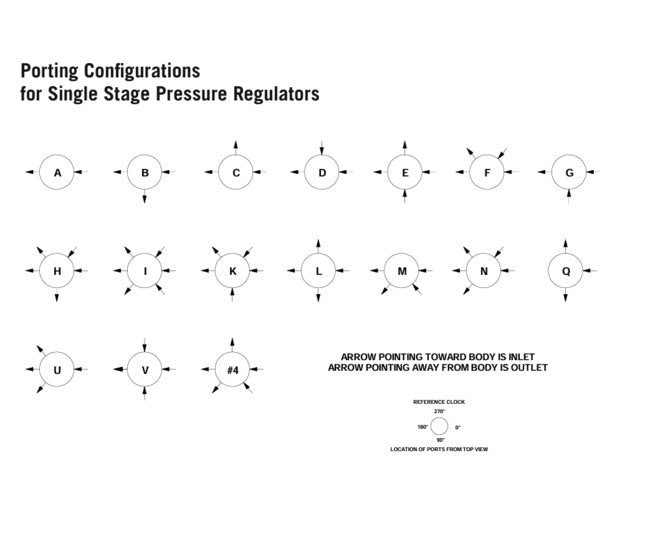

Specifications Port Configuration
Standard
Specifications Process Port Types
1/4 in. Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
