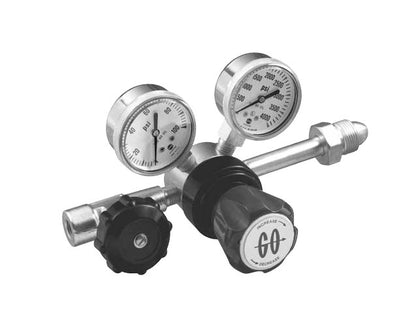

GO Regulator CYL-1 Brass Cylinder Regulator - 0.06 Cv Single Stage

Name: GO Regulator CYL-1 Brass Cylinder Regulator - 0.06 Cv Single Stage
Brand: Del Val Controls, Inc
SKU: GOP-fe0a18
Price: 149.99 USD
Availability: OutOfStock

SKU:GOP-fe0a18

GO Regulator CYL-1 Brass Cylinder Regulator - Compact, Precise, Reliable

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The GO Regulator CYL-1 Brass Cylinder Regulator is a compact pressure control module featuring a reliable PR-2 Series valve. Ideal for instrumentation sample systems and applications not requiring stainless steel corrosion resistance. With a Cv of 0.06 and an outlet range of 0 to 250 psig, this regulator offers precise control and durability. It includes integral inlet filter, brass gauges, and Tefzel seat material for handling non-corrosive gases. Contact the factory for any additional requirements.

Product Specifications

Features And Specifications Features And Specifications

CGA inlet fittingIntegral inlet filter2" diameter brass gaugesPTFE-lined stainless steel diaphragmFluid media; non-corrosive gases

Note Note

Contact the factory for any additional requirements.

Specifications Cap Assembly

Panel Mount, Stainless Steel

Specifications Compressed Gas Association Cga Fitting

Omit Compressed Gas Association (CGA)

Specifications Diaphragm Type

Standard Diaphragm

Specifications Flow Coefficient Cv

0.06

Specifications Gauge Port Types

1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports

Specifications Maximum Inlet Pressure

3600 psig

Specifications Operating Temperature

-40 to +175 ÂºF | -40 to +80 ÂºC

Specifications Outlet Range

0 to 250 psig

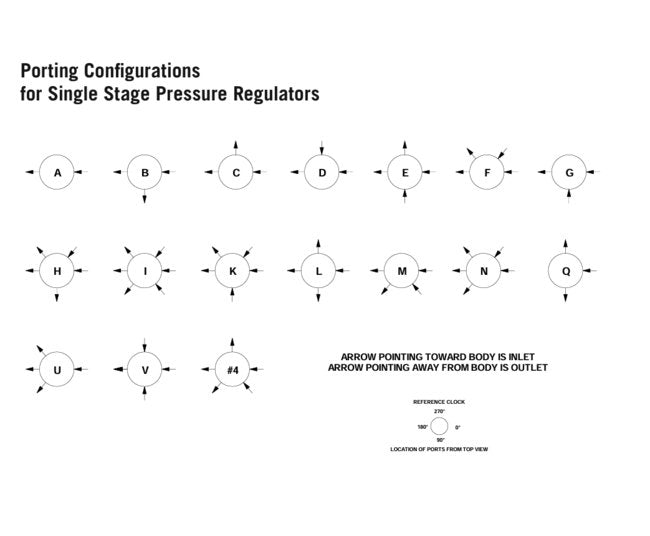

Specifications Port Configuration

Standard

Specifications Process Port Types

1/4 in. Female National Pipe Tapered (FNPT)

Specifications Seat Material

TefzelÂ®

GO Regulator CYL-1 Brass Cylinder Regulator - 0.06 Cv Single Stage
