GO Regulator CYL-1 Brass Cylinder Regulator
GO Regulator CYL-1 Brass Cylinder Regulator
SKU:GOP-4476d4
Reliable CYL-1 brass cylinder regulator for precise gas pressure control in various applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
GO Regulator CYL-1 Brass Cylinder Regulator
$129.99
Quantity: 1
Claim Your Seller Account
GO Regulator CYL-1 Brass Cylinder Regulator
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

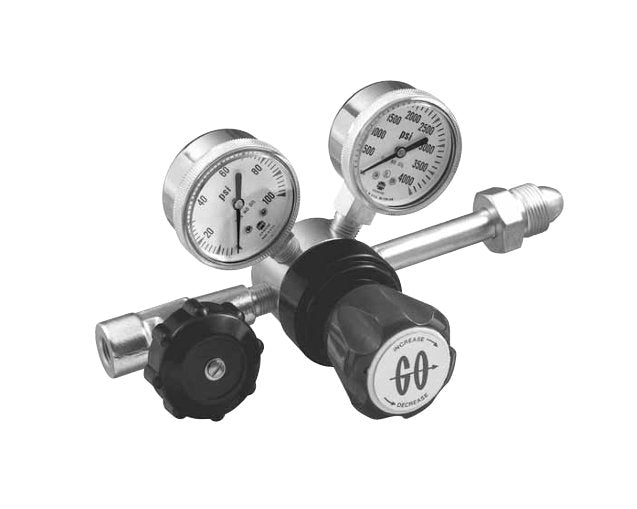

The GO Regulator CYL-1 0.06 Flow Coefficient (Cv) Single Stage Brass Cylinder Regulator is a compact pressure control module featuring a durable PR-2 Series pressure control valve. Perfect for instrumentation sample systems, it offers high reliability and functionality. With a corrosion-resistant Tefzel® seat material, an outlet range of 0 to 250 psig, and stainless steel cap assembly, this regulator is ideal for compressed gas applications not requiring stainless steel. It includes integral inlet filter, 2" brass gauges, and a PTFE-lined diaphragm for use with non-corrosive gases.
Product Specifications
Features And Specifications Features And Specifications
CGA inlet fittingIntegral inlet filter2" diameter brass gaugesPTFE-lined stainless steel diaphragmFluid media; non-corrosive gases
Note Note
Contact the factory for any additional requirements.
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Compressed Gas Association Cga Fitting
Omit Compressed Gas Association (CGA)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.06
Specifications Gauges
Include Gauges
Specifications Gauge Port Types
1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports
Specifications Maximum Inlet Pressure
3600 psig
Specifications Operating Temperature
-40 to +175 ºF | -40 to +80 ºC
Specifications Outlet Range
0 to 250 psig

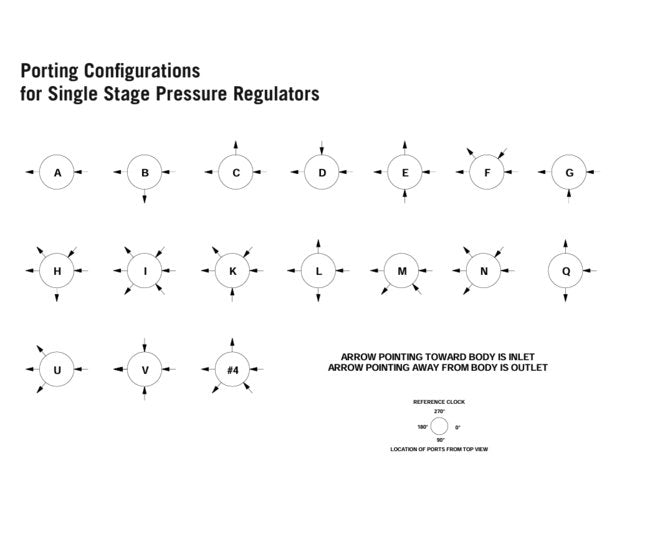

Specifications Port Configuration
Standard
Specifications Process Port Types
1/4 in. Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
