GO Regulator CYL-1 Brass Cylinder Regulator
GO Regulator CYL-1 Brass Cylinder Regulator
SKU:GOP-124c9f
Compact and reliable brass cylinder regulator for precise pressure control.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
GO Regulator CYL-1 Brass Cylinder Regulator
$129.99
Quantity: 1
Claim Your Seller Account
GO Regulator CYL-1 Brass Cylinder Regulator
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

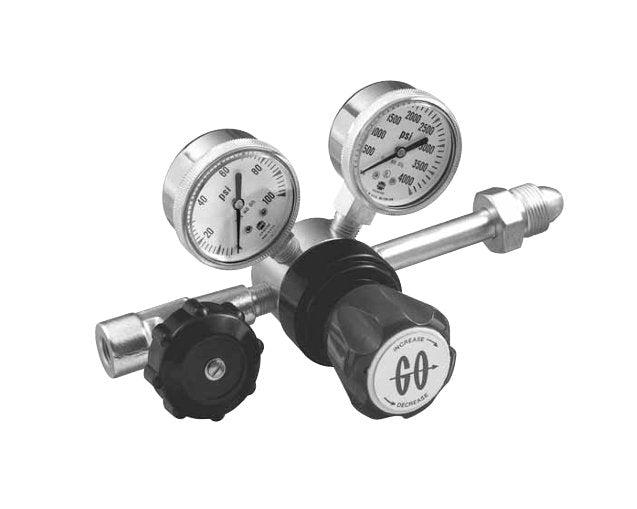

The GO Regulator CYL-1 Brass Cylinder Regulator is a compact pressure control module featuring a PR-2 Series valve known for maximum reliability. Designed for compressed gas cylinder regulation without requiring stainless steel corrosion resistance, this regulator includes integral inlet filtration, 2" brass gauges, and a PTFE-lined stainless steel diaphragm. With a flow coefficient (Cv) of 0.06 and an outlet range of 0 to 250 psig, it operates in temperatures from -40 to +175°F. Suitable for non-corrosive gas applications, this regulator ensures precise pressure control.
Product Specifications
Features And Specifications Features And Specifications
CGA inlet fittingIntegral inlet filter2" diameter brass gaugesPTFE-lined stainless steel diaphragmFluid media; non-corrosive gases
Note Note
Contact the factory for any additional requirements.
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.06
Specifications Gauges
Include Gauges
Specifications Gauge Port Types
1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports
Specifications Maximum Inlet Pressure
3600 psig
Specifications Operating Temperature
-40 to +175 ºF | -40 to +80 ºC
Specifications Outlet Range
0 to 250 psig

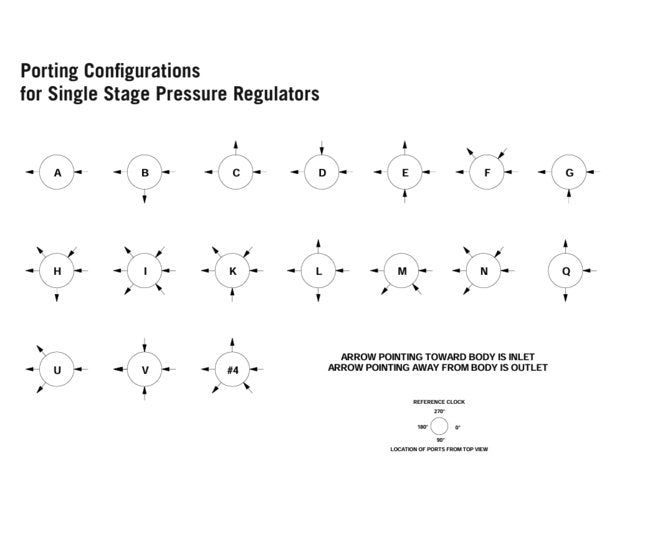

Specifications Port Configuration
Standard
Specifications Process Port Types
1/4 in. Female National Pipe Tapered (FNPT)
Specifications Seat Material
Tefzel®
