GO Regulator CYL-2 2-Stage Brass Gas Pressure Regulator, 0-250 psig
GO Regulator CYL-2 2-Stage Brass Gas Pressure Regulator, 0-250 psig
SKU:GOP-47ab2a
Achieve precision and stability with the GO Regulator CYL-2 2-Stage Brass Gas Pressure Regulator.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
GO Regulator CYL-2 2-Stage Brass Gas Pressure Regulator, 0-250 psig
$349.99
Quantity: 1
Claim Your Seller Account
GO Regulator CYL-2 2-Stage Brass Gas Pressure Regulator, 0-250 psig
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

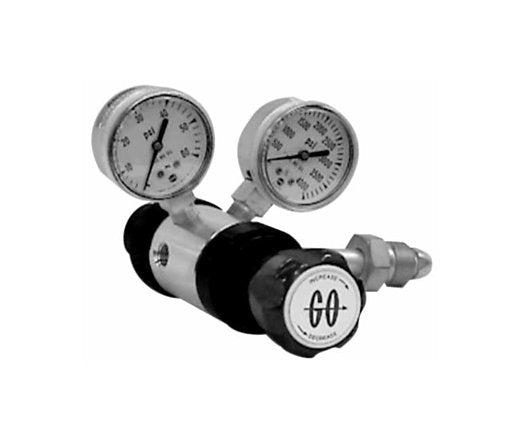

The GO Regulator CYL-2 is a premium two-stage brass gas pressure reducing regulator designed to deliver precise and stable pressure for instrumentation applications. With a brass construction, PTFE-lined stainless steel diaphragms, and Tefzel® seats, it ensures reliability and durability. This regulator features integral filters, stainless steel caps, and optional relief and shut off valves. Meeting the highest standards, including a pressure test certificate option, this regulator is ideal for applications requiring precision and flexibility.
Product Specifications
Features And Specifications Features And Specifications
Brass construction1st stage integral 20 micron filter and 2nd stage integral 40 micron filterPTFE-lined stainless steel diaphragm in both stagesTefzel® seats are standard2" diameter brass gaugesCGA inlet fittingStainless steel capsOptional relief valves and shut off valvesFluid media; non-corrosive gases1/4" FNPT inlet/outlet connections standard
Note Note
Contact the factory for any additional requirements.
Options Options
Pressure Test Certificate
Specifications 1st Stage Flow Coefficient Cv
0.2
Specifications 1st Stage Seat Material
Tefzel®
Specifications 2nd Stage Flow Coefficient Cv
0.2
Specifications 2nd Stage Seat Material
Tefzel®
Specifications Cap Assembly 1st Stage
Tamper Proof, Standard, Stainless Steel
Specifications Cap Assembly 2nd Stage
Standard, Stainless Steel
Specifications Diaphragm Type 1st Stage
Standard Diaphragm
Specifications Diaphragm Type 2nd Stage
Standard Diaphragm
Specifications Gauge Port Types
1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports
Specifications Maximum Inlet Pressure
3600 psig
Specifications Operating Temperature
-40 to +175 ºF | -40 to +80 ºC
Specifications Output Range
0 to 250 psig
Specifications Port Configuration
Standard
Specifications Process Port Types
1/4 in. Female National Pipe Tapered (FNPT)
