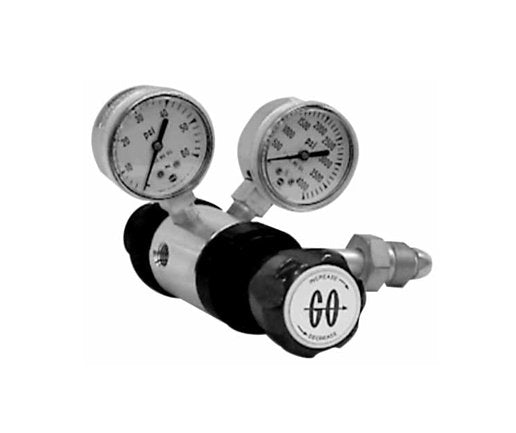

The GO Regulator CYL-2 Brass Two-Stage Gas Pressure Regulator is a precision instrument designed for demanding applications where precise and stable pressure control is essential. With brass construction, PTFE-lined stainless steel diaphragms, Tefzel® seats, and integral filters, this regulator ensures reliable performance. It features a 0 to 100 psig output range, stainless steel caps, and optional relief valves for added flexibility. Suitable for non-corrosive gases, this regulator meets the highest industry standards for quality and performance.
Product Specifications
Features And Specifications Features And Specifications
Brass construction1st stage integral 20 micron filter and 2nd stage integral 40 micron filterPTFE-lined stainless steel diaphragm in both stagesTefzel® seats are standard2" diameter brass gaugesCGA inlet fittingStainless steel capsOptional relief valves and shut off valvesFluid media; non-corrosive gases1/4" FNPT inlet/outlet connections standard
Note Note
Contact the factory for any additional requirements.
Specifications 1st Stage Flow Coefficient Cv
0.06
Specifications 1st Stage Seat Material
Tefzel®
Specifications 2nd Stage Seat Material
Tefzel®
Specifications Cap Assembly 1st Stage
Tamper Proof, Standard, Stainless Steel
Specifications Cap Assembly 2nd Stage
Standard, Stainless Steel
Specifications Diaphragm Type 1st Stage
Standard Diaphragm
Specifications Diaphragm Type 2nd Stage
Standard Diaphragm
Specifications Gauge Port Types
1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports
Specifications Maximum Inlet Pressure
3600 psig
Specifications Operating Temperature
-40 to +175 ºF | -40 to +80 ºC
Specifications Output Range
0 to 100 psig
Specifications Port Configuration
Standard
Specifications Process Port Types
1/4 in. Female National Pipe Tapered (FNPT)
