GO Regulator CYL-2 Series Precision Cylinder Regulators
GO Regulator CYL-2 Series Precision Cylinder Regulators
SKU:GOR-8259dc
Enhance precision and stability with GO Regulator CYL-2 Series Cylinder Regulators. Ideal for instrumentation applications, ensuring reliable pressure control.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
GO Regulator CYL-2 Series Precision Cylinder Regulators
$189.99
Quantity: 1
Claim Your Seller Account
GO Regulator CYL-2 Series Precision Cylinder Regulators
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

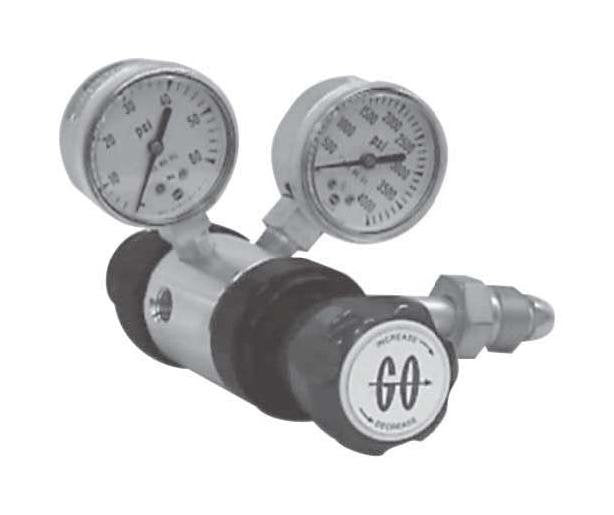

The GO Regulator CYL-2 Series Precision Cylinder Regulators are expertly crafted for demanding instrumentation applications, offering a precise and stable pressure source. With a two-stage design, these regulators cater to the needs of the instrumentation industry while ensuring precision pressure for various other applications. Built with brass construction, Teflon® lined stainless steel diaphragms, and optional relief valves, these regulators guarantee maximum flexibility and reliability. Featuring a range of outlet pressure options and a wide operating temperature range, the CYL-2 Series is the optimal choice for institutions seeking top-notch pressure control solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Body Material
Brass
Specifications Cap Assembly 1st Stage
Tamper-proof
Specifications Cap Assembly 2nd Stage
Standard
Specifications Cga Fitting
CGA
Specifications Diaphragm Type
Self-relieving
Specifications Flow Cv
0.025
Specifications Gauges
Include gauges
Specifications Max Operating Pressure
3600 psig
Specifications Operating Temperature
-40 to 150 ºF | -40 to 66 ºC
Specifications Outlet Range
0 to 250 psig
Specifications Port Configuration
Standard
Specifications Process Port Type
1/4" FNPT
Specifications Seat Material
Tefzel®
Specifications Series
CYL-2

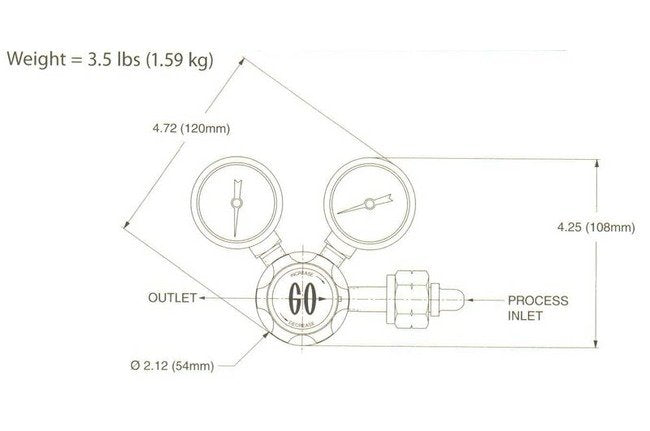

Specifications Weight
3.5 lbs
