GO Regulator CYL-2 Two-Stage Brass Gas Pressure Reducing Regulator - 0 to 250 psig Outlet Range
GO Regulator CYL-2 Two-Stage Brass Gas Pressure Reducing Regulator - 0 to 250 psig Outlet Range
SKU:GOP-67d016
Achieve precision and stability with the GO Regulator CYL-2 Two-Stage Brass Gas Pressure Regulator.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
GO Regulator CYL-2 Two-Stage Brass Gas Pressure Reducing Regulator - 0 to 250 psig Outlet Range
$289.99
Quantity: 1
Claim Your Seller Account
GO Regulator CYL-2 Two-Stage Brass Gas Pressure Reducing Regulator - 0 to 250 psig Outlet Range
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

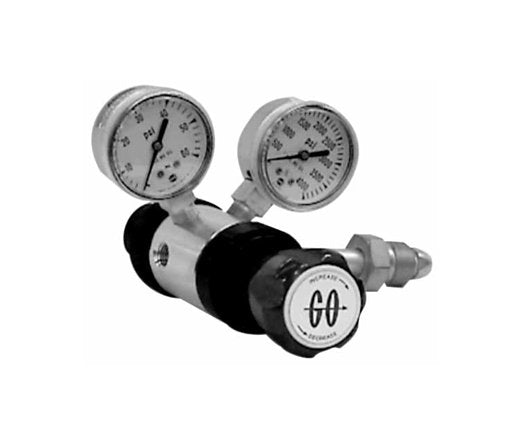

The GO Regulator CYL-2 is a precision two-stage brass gas pressure reducing regulator designed for instrumentation applications that demand a stable pressure source. With PTFE-lined stainless steel diaphragms in both stages, this regulator offers reliability and accuracy. Its brass construction, integral filters, and Tefzel® seats ensure durability and precise control. Ideal for non-corrosive gas applications, this regulator includes optional relief valves and shut off valves for added safety measures.
Product Specifications
Features And Specifications Features And Specifications
Brass construction1st stage integral 20 micron filter and 2nd stage integral 40 micron filterPTFE-lined stainless steel diaphragm in both stagesTefzel® seats are standard2" diameter brass gaugesCGA inlet fittingStainless steel capsOptional relief valves and shut off valvesFluid media; non-corrosive gases1/4" FNPT inlet/outlet connections standard
Note Note
Contact the factory for any additional requirements.
Specifications 1st Stage Flow Coefficient Cv
0.06
Specifications 1st Stage Seat Material
Ceramic Filled Polytetrafluoroethylene (PTFE)
Specifications 2nd Stage Flow Coefficient Cv
0.06
Specifications 2nd Stage Seat Material
Ceramic Filled Polytetrafluoroethylene (PTFE)
Specifications Cap Assembly 1st Stage
Tamper Proof, Standard, Stainless Steel
Specifications Cap Assembly 2nd Stage
Standard, Stainless Steel
Specifications Diaphragm Type 1st Stage
Standard Diaphragm
Specifications Diaphragm Type 2nd Stage
Standard Diaphragm
Specifications Gauges
Include Gauges
Specifications Gauge Port Types
1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports
Specifications Maximum Inlet Pressure
3600 psig
Specifications Operating Temperature
-40 to +175 ºF | -40 to +80 ºC
Specifications Output Range
0 to 250 psig
Specifications Port Configuration
Standard
Specifications Process Port Types
1/4 in. Female National Pipe Tapered (FNPT)
