GO Regulator CYL-2 Two-Stage Brass Gas Pressure Regulator
GO Regulator CYL-2 Two-Stage Brass Gas Pressure Regulator
SKU:GOP-83be72
Achieve precision and stability with the GO Regulator CYL-2 Brass Gas Pressure Regulator. Ideal for instrumentation and precision applications.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
GO Regulator CYL-2 Two-Stage Brass Gas Pressure Regulator
$199.99
Quantity: 1
Claim Your Seller Account
GO Regulator CYL-2 Two-Stage Brass Gas Pressure Regulator
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

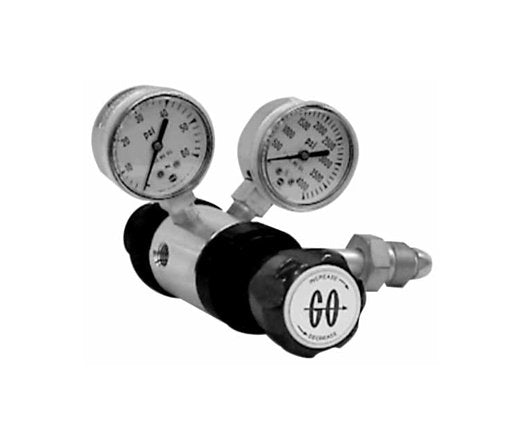

The GO Regulator CYL-2 provides precise and stable pressure control, ideal for instrumentation and applications requiring accuracy. With brass construction, Tefzel® seats, and stainless steel diaphragms, this regulator ensures reliability and durability. Featuring 1st and 2nd stage integral filters, optional relief valves, and shut off valves, it offers maximum flexibility for pressure regulation. Designed to meet the highest standards in the industry, the CYL-2 Series is the go-to choice for demanding applications.
Product Specifications
Features And Specifications Features And Specifications
Brass construction1st stage integral 20 micron filter and 2nd stage integral 40 micron filterPTFE-lined stainless steel diaphragm in both stagesTefzel® seats are standard2" diameter brass gaugesCGA inlet fittingStainless steel capsOptional relief valves and shut off valvesFluid media; non-corrosive gases1/4" FNPT inlet/outlet connections standard
Note Note
Contact the factory for any additional requirements.
Specifications 1st Stage Flow Coefficient Cv
0.06
Specifications 1st Stage Seat Material
Tefzel®
Specifications 2nd Stage Flow Coefficient Cv
0.06
Specifications 2nd Stage Seat Material
Tefzel®
Specifications Cap Assembly 1st Stage
Tamper Proof, Standard, Stainless Steel
Specifications Cap Assembly 2nd Stage
Standard, Stainless Steel
Specifications Diaphragm Type 1st Stage
Standard Diaphragm
Specifications Diaphragm Type 2nd Stage
Standard Diaphragm
Specifications Gauges
Include Gauges
Specifications Gauge Port Types
1/4 in. Female National Pipe Tapered (FNPT) Gauge Ports
Specifications Maximum Inlet Pressure
3600 psig
Specifications Operating Temperature
-40 to +175 ºF | -40 to +80 ºC
Specifications Output Range
0 to 50 psig
Specifications Port Configuration
Standard
Specifications Process Port Types
1/4 in. Female National Pipe Tapered (FNPT)
